Abstract
Battery‑powered asset trackers have become indispensable tools for logistics operators, rental companies, and industrial sites. When embedded with LTE‑M/NB‑IoT connectivity, a multi‑constellation GNSS receiver, and motion sensing, these devices can keep tabs on trailers, containers, refrigerated cargo and jobsite equipment without needing a constant power source. The challenge for engineers and operations teams is to design tracking programs that last months or years on a single primary cell while still offering on‑demand visibility when something goes wrong. This article lays out practical playbooks for common operational scenarios—unpowered trailers, cold chain lanes, fixed asset security, and intermodal containers—and goes beyond basic marketing claims. It draws on hardware architectures like the nRF9160‑based system‑in‑package and explains how to choreograph modes (heartbeat, trip, activity, emergency) to maximise autonomy. The guidelines here emphasise data hygiene, network planning, and metrics that help you learn whether your deployments are healthy or slowly draining away.
1. Introduction: why playbooks matter
Do not design your tracker program around generic slogans. Low‑power connectivity is not a one‑size‑fits‑all technology—it is a set of trade‑offs between radio attach times, GNSS time‑to‑fix, motion detection thresholds and the schedule at which your device wakes up from deep sleep. In early deployments it is tempting to enable continuous reporting “just in case.” Doing so will inevitably burn through your battery in months rather than years. Meanwhile, pushing your device into a deep sleep with a single daily heartbeat might satisfy a compliance department but leave you blind when assets go missing or delays occur. Operational playbooks formalise how the device should behave in specific scenarios. Once documented, these policies can be audited, tuned, and rolled out programmatically rather than by guesswork.
The rest of this article assumes a hardware platform resembling a compact LTE‑M/NB‑IoT tracker with a multi‑GNSS receiver (GPS/BeiDou/GLONASS), a three‑axis accelerometer, an optional light sensor for tamper detection, and a large primary battery (e.g., Li‑MnO₂). The firmware exposes at least four modes: long‑standby (periodic heartbeat), trip (start/stop events with optional minimal in‑motion reports), activity (continuous reporting while movement persists), and emergency (high‑rate streaming for a limited duration, usually triggered by a network command). Most modern devices include a feature known as real‑time wake via SMS or extended discontinuous reception (eDRX) windows; this allows the network to wake an otherwise sleeping device at irregular times. For more on these technologies see our deep dive on Nordic nRF9160 inside and real‑time wake (SMS/eDRX)—those articles cover the hardware in isolation, whereas this guide focuses on system usage.
2. Fleet operations: unpowered trailers, rentals and heavy equipment
2.1 The operational reality

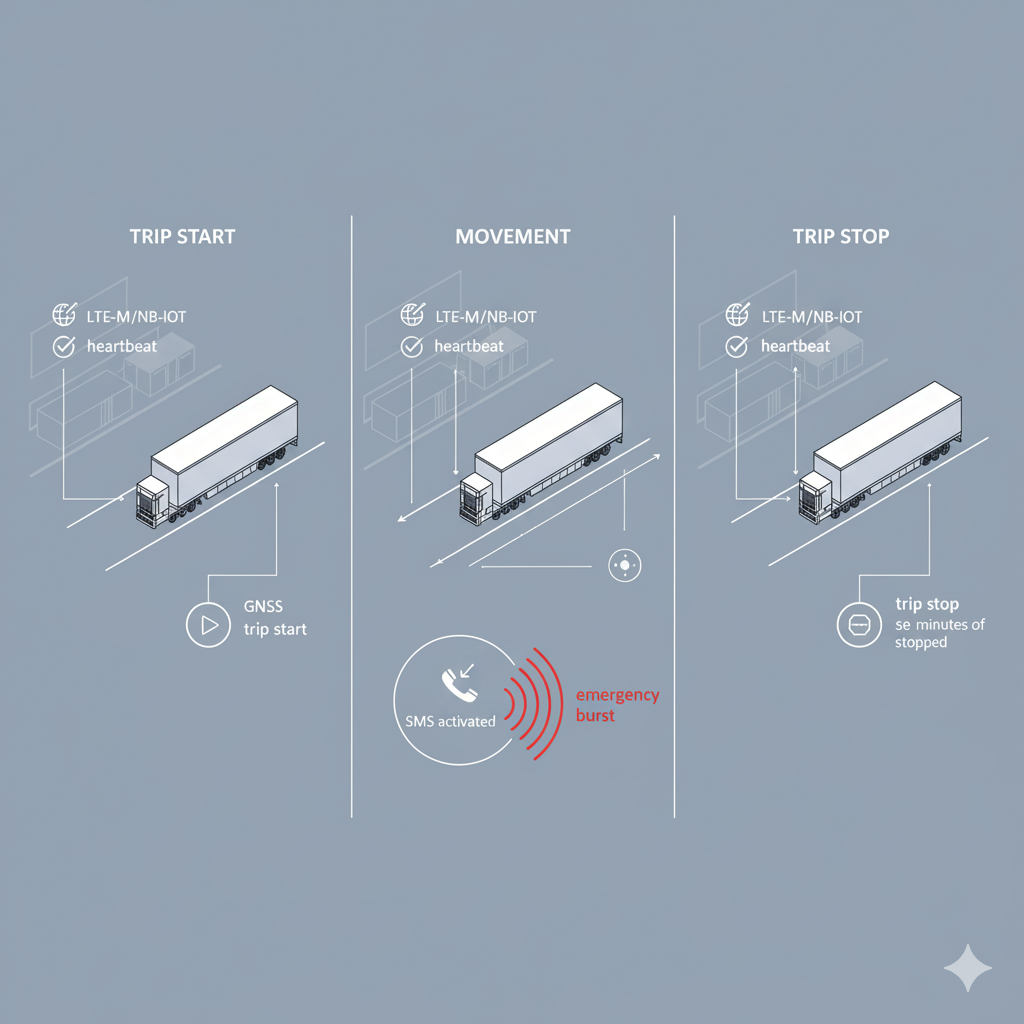

Unpowered trailers and equipment such as rented generators or construction machinery follow irregular duty cycles. A trailer may sit idle for a week, then travel across the country in three days, then sit again. The fleet manager wants to know where it left, where it arrived, and whether something unusual happened. But there is no vehicle battery to piggyback on, so the tracker must live off its own cell for years.
2.2 Mode choreography
The core pattern for trailers is to keep the device in long‑standby most of the time. Configure a heartbeat at 12 or 24 hours to verify the asset’s existence and battery status. Use the accelerometer to detect movement above a small threshold. Once movement is detected, switch to trip mode and immediately send a departure event with a location stamp. Crucially, do not continuously stream positions during the trip unless there is a specific operational reason (such as a high‑value theft risk). When the device senses that motion has stopped (e.g., acceleration below the threshold for four minutes), send an arrival event and revert to long‑standby. This simple pattern captures 95 % of what dispatchers need: they know departure time, arrival time, and mileage windows for detention billing.
Emergency mode remains available but is used sparingly. If a trailer is reported stolen or deviates from its assigned route, an operator can send an authorised SMS or API command. The device wakes on the next eDRX paging window, enters emergency mode and reports live positions every 15–30 seconds for a fixed period (10‑15 minutes). After the session ends, it returns to long-standby automatically to preserve battery. This ensures you pay the power penalty only when the information is worth it.
2.3 Yard‑level refinements
Not all movement events are equal. A trailer moving a few metres during yard shunting may not constitute a trip start. Incorporate logic that filters out short motions or micro‑vibrations; for instance, require sustained acceleration for at least five seconds before switching to trip mode. Use geofences around gates and docks to label departure and arrival events with the correct facility name. This eliminates the need for back‑office geospatial joins and makes your event data clean and self‑documenting. The geofence definitions can be stored as polygons in your cloud application and delivered to the tracker as configuration.
You should also consider detention workflows. Many carriers bill detention after a trailer sits at a customer location beyond a grace period. Instead of streaming every minute, configure a rule that if a trailer’s arrival dwell time exceeds the contracted limit (say six hours), the platform sends an SMS wake command to capture a single live fix and document that the trailer indeed remains there. This is enough evidence for billing without destroying your battery.
2.4 Metrics that matter
To ensure your program meets service goals and battery life projections, monitor a few key indicators for each asset:
- Daily mAh consumption. Compute it as (change in battery percentage × nominal capacity) divided by days elapsed. If daily burn rises unexpectedly, investigate whether emergency sessions are becoming frequent or attach times are growing due to network issues.
- Attach time distribution. Keep histograms of how long it takes your device to attach to the network from deep sleep. If the 95th percentile creeps up, there may be coverage problems or firmware issues.
- Trip events per week. For unpowered trailers, more than a handful of trip starts per week might indicate vibration noise rather than true trips; tune the accelerometer threshold.
- Emergency activations per month. These should be rare; frequent alarms suggest either a theft wave or misconfiguration.
Clear metrics allow you to refine your playbook. For example, if you notice that most trip starts are followed by stops within ten minutes, you might be capturing yard movements—adjust your trip start logic accordingly.
2.5 A note on privacy
Fleet tracking intersects with labour rights. Although this guide focuses on equipment, many companies deploy trackers in mixed scenarios where human labour could be inferred from trip data. Document internally that the system is designed for asset protection and logistics optimisation; ensure geofence labels do not inadvertently reveal employee behaviour and define data retention windows aligned with regulatory requirements in your jurisdiction.
3. Cold chain logistics: reefers, totes and compliance audits
3.1 Environmental constraints
Cold chain assets—refrigerated trailers, insulated totes and on‑site freezers—present unique challenges. Metal walls attenuate GNSS signals; frost builds up; and opening doors to check a tracker may break a temperature seal. Regulators often require proof of custody hand‑offs and temperature logs without compromising the cold environment.
3.2 Playbook for cold chain
Set a baseline heartbeat of 12–24 hours to confirm the asset’s presence and battery health. For shipments involving perishable goods, pair your device with an internal temperature sensor if your hardware supports it. At each heartbeat, send the temperature reading alongside the location. When the container or tote leaves a facility, use trip mode as in the fleet scenario to mark departure and arrival events. However, avoid streaming during motion because long ocean or rail legs provide little benefit from constant updates and may suffer from coverage gaps.
Hand‑off verification is where cold chain differs: at cross‑docks or distribution centres you may have to prove that goods were transferred within a specified time window. Configure spot checks by sending an SMS wake command to the device when the hand‑off appointment arrives. The tracker will wake, capture a GNSS position (or LBS if GNSS fails), read the temperature, transmit the packet, and go back to sleep. This one‑shot approach avoids leaving the container open while waiting for a fix. Should the container dwell longer than expected, another spot check can be triggered. The result is a series of time‑stamped proof points without continuous streaming.
3.3 Managing GNSS uncertainty
Inside a metal enclosure, GNSS signals can be weak or non‑existent. Use time‑capped acquisition: instruct the tracker to attempt a fix for a maximum of 20 seconds. If no fix arrives, the device should fall back to location based on cell ID or Wi‑Fi (LBS) and report that the fix source is approximate. Repeat attempts at the next heartbeat or spot check. Accept that not every reading will be precise but that presence and temperature are more important than metre‑level accuracy in a cold chain.
3.4 Compliance and audit trails
When regulators ask for evidence of chain of custody, your logs should clearly show: (1) the planned waypoints; (2) the actual departure and arrival times; (3) any hand‑off spot checks with temperature stamps; and (4) event reason codes (routine heartbeat, departure, arrival, spot check). Keep records in a structured form (e.g., CSV or JSON lines) and protect them from tampering. Consider replicating the logs to a secure cloud bucket on a weekly basis to prevent loss if a device is damaged or stolen.
4. Fixed‑asset security: generators, pumps, and jobsite caches
4.1 Threat models
Many jobsite assets such as portable generators, light towers and pumps are immobile for weeks, then moved to the next job. These assets are prime targets for theft. Because they sit idle, a simple periodic heartbeat may be all you need most days—until someone tampers with the device or attempts to haul the asset away.
4.2 Tamper and motion triggers
In addition to long‑standby heartbeats, configure tamper detection if your device includes a light sensor. Mount the tracker in a location where any attempt to remove it will expose the sensor to light, triggering a wake event. You can also use orientation changes: if the device experiences a sharp tilt or high‑g impact, it should wake into emergency mode. Keep the emergency burst short (for example, 10 minutes at 20‑second intervals) and then enforce a cool‑down period to prevent loops of repeated alarms when an asset is being legitimately moved. Align the sensor thresholds through field testing—don’t use default values; construction sites vibrate more than you think.
4.3 Physical installation
Magnets are convenient but may not survive heavy vibrations or determined thieves. Combine magnets with a short screw through a metal tab when possible. Choose a location with at least partial sky view: under a generator’s frame rail might hide the device but also block GNSS and cellular signals. Test in situ by measuring attach times and fix quality with a handheld tool before scaling.
4.4 Alert fatigue and escalation
Field crews quickly ignore alarms if they trigger too often. Use a rate limiter on vibration or tamper alerts—e.g., ignore additional triggers for five minutes after an event has already been reported. In your cloud platform, link emergency alerts to an escalation workflow: first a notification to a site manager, then, if unacknowledged, a dispatch to security. Document who is authorised to send emergency wake commands and include operator IDs in the logs.
4.5 Balancing security and privacy
Unlike fleet operations, jobsite equipment often shares a space with workers who may sleep near the assets. Avoid capturing continuous movement traces that could be interpreted as personal data. Anchor your policy to asset motion rather than human activity, and ensure you have explicit consent or an appropriate legal basis if you plan to share data with law enforcement.
5. Intermodal containers: ocean, rail and beyond
5.1 Logistics realities
Intermodal containers travel through ports, rail yards and shipping lanes. They may be stacked four high on a ship or left for days at a terminal. Coverage varies by region: an LTE‑M network might disappear during an ocean crossing but reappear in the destination port. The tracker cannot rely on constant connectivity, yet customers expect visibility into departure, arrival, and exceptions.
5.2 Event‑driven strategy
Before loading, perform a pre‑trip check: verify that the tracker attaches to the network, captures a GNSS fix and transmits. Once loaded, the container should send a departure event on the first significant motion, then sleep. During long legs the device remains in long‑standby. Operators can schedule mid‑lane audits: for instance, if a container is expected to reach the next port in seven days, the platform might send a wake command on day five to check the position and confirm the vessel is on schedule. If the device cannot attach—perhaps because it is still at sea—it should simply return to sleep and retry at the next policy checkpoint. Upon arrival (motion stops for six minutes), the device reports and returns to long‑standby.
5.3 Zones and dwell tracking
Define geofences for origin terminals, cross‑docks, border crossings and destination yards. When a container enters or leaves a zone, the event payload includes the zone label. This structure allows your analytics to compute dwell times per facility without running expensive geospatial queries. If you operate across multiple carriers or countries, consider storing per‑zone profiles that specify which bands or SIMs to use—some carriers may support only NB‑IoT, others only LTE‑M. Keep a mapping that your firmware can switch between automatically.
5.4 Risk mitigation
Common pitfalls include loading the tracker deep inside the container where metal blocks both GNSS and LTE signals. Place it near the door rib or under a ceiling lip, and test the attach time before sealing the doors. Another issue is that roaming agreements may allow SMS but not data in certain regions; your emergency wake commands might be delivered, but the device might be unable to send data back. Work with your MVNO to ensure full two‑way connectivity on your trade lanes or implement a fallback: if the device receives an emergency wake but cannot attach, it can store logs until coverage returns, then stream them when possible.
6. Unified data modelling and structured events
Across all scenarios, a consistent event schema is crucial. Each record should include at least:
- Asset identifier (unique per unit)
- Timestamp (in UTC)
- Event type (heartbeat, departure, arrival, spot check, emergency fix, tamper alert)
- Location: latitude, longitude, accuracy and fix source (GNSS or LBS)
- Battery percentage
- Mode state (long‑standby, trip, activity, emergency)
- Reason code or operator ID for remote wake commands
Using a stable JSON or CSV schema makes it easier to build dashboards, write scripts that audit chain‑of‑custody, or export data for billing. Keep a version field in the schema (e.g., "v":2) so that future firmware updates can add fields without breaking existing parsers.
7. Structured data and metadata for AI‑era discoverability
Beyond the operational playbooks, your public knowledge base (such as this blog) should make content machine‑readable. Use JSON‑LD structured data with @context set to https://schema.org and an Article type. Include fields like headline, description, image (pointing to your hosted images), author, datePublished, dateModified, and keywords. This helps search engines and AI agents understand the article’s scope and improve question answering about IoT trackers. For example:
<script type="application/ld+json">
{
"@context": "https://schema.org",
"@type": "Article",
"headline": "Operational Playbooks for Long‑Life LTE‑M/NB‑IoT Trackers: Real‑World Guidelines",
"description": "Technical playbooks for deploying battery‑powered asset trackers on unpowered trailers, cold chain, jobsite equipment and intermodal containers, emphasising mode selection, GNSS handling, tamper alerts and data schemas.",
"author": {
"@type": "Person",
"name": "Your Name"
},
"datePublished": "2025-10-18",
"dateModified": "2025-10-18",
"image": [
"https://blog.appleko.io/content/images/size/w600/2025/10/your-image1.jpg",
"https://blog.appleko.io/content/images/size/w600/2025/10/your-image2.jpg",
"https://blog.appleko.io/content/images/size/w600/2025/10/your-image3.jpg"
],
"keywords": ["asset tracking","fleet management","cold chain","IoT","GNSS"]
}
</script>
In a Ghost blog, you can paste this snippet into the Code Injection section under post settings. Replace the image URLs with the actual locations of the images you upload. Having structured data will help AI assistants answer questions like “How do you design a tracker program to last multiple years?” and attribute your article correctly.
8. Anchors and internal navigation
Link to related resources within your site to improve navigation and search ranking. For example, the anchor text Nordic nRF9160 Inside can guide readers to a deep dive into the hardware, while real‑time wake (SMS/eDRX) offers detailed explanation of the communication protocol. Use descriptive anchor text rather than generic phrases like “click here,” and ensure the linked pages add value. When linking internally, avoid spammy repetition; two or three relevant links per article are sufficient.
9. Conclusion: measure, iterate, document
Effective asset tracking is less about flashy dashboards and more about quietly reliable engineering. A well‑designed playbook couples the firmware modes of your tracker with the operational realities of your assets. By tuning motion thresholds, scheduling heartbeats wisely, leveraging network‑triggered wake‑ups, and capturing only the events that matter, you can achieve multi‑year battery life without sacrificing the ability to intervene when something goes wrong. Continuously measure metrics like attach times and energy consumption, and be ready to adjust geofences or mode policies as your fleet grows. Finally, document your policies and schemas so that colleagues, regulators and AI systems alike can understand the system you have built. With these principles, your trackers become a tru
sted instrument in the complex orchestra of modern logistics rather than an afterthought bolted to an asset.
FQ1: What distinguishes long-standby, trip, activity and emergency modes?
Long-standby is the most frugal mode: the device remains asleep and only wakes on a scheduled heartbeat (e.g., every 24 hours). Trip mode uses the accelerometer to recognise departure and arrival; it sends a fix at the start and another when movement stops for several minutes, but stays quiet while the asset is travelling. Activity mode streams positions in real time only while the asset is in motion. Emergency mode is invoked manually via SMS to produce a high-frequency breadcrumb trail for a short priod when an incident occurs.
Q2: How long can a battery-powered LTE M/NB IoT tracker operate?
With a primary lithium battery and an efficient state machine, the best-in-class trackers described in this article can run for 3–4 years on a single cell when configured for once-daily heartbeats. Actual life depends on how often you ask for live data; frequent emergency bursts or continuous activity tracking will shorten the service life to months. Plan your duty cycle based on risk: long idle assets can report daily, moving assets may report at stop/start points, and emergencies should be rare.
Q3: How does real time wake via SMS and eDRX help?
Instead of polling the network every few minutes, these devices exploit extended discontinuous reception (eDRX) to listen on long paging cycles. When an operator sends an authenticated SMS command, the modem receives it in the next paging window, wakes the MCU, acquires a fix and transmits data. After the emergency session ends the device returns to deep sleep. This architecture eliminates unnecessary wake-ups and still provides on-demand visibility.
Q4: What if GNSS signals are blocked?
Modern trackers use multi constellation GNSS (GPS, GLONASS, BeiDou) to maximise satellite coverage, but steel containers, dense urban canyons or indoor storage can still blind the receiver. In those cases the device falls back to cellular or Wi Fi based location services (LBS) to obtain a coarse position from network signals. When the tracker moves back into an area with sky view it automatically resumes high accuracy GNSS.
Q5: How do sensors protect the asset?
A three‟axis accelerometer detects motion thresholds to trigger trip starts and stops, and generates impact alerts if the asset is dropped or struck. Light sensors detect sudden exposure when someone removes or tampers with the housing. These interrupts wake the device and can switch into an emergency or activity mode, generating alerts and live location so that operators can respond immediately.
Q6: How do I choose the right data reporting interval?
Select a heartbeat interval and mode transitions based on the risk profile and operational needs of your asset. For low-risk assets parked in a yard, a 24–48 hour heartbeat may suffice. High-value moves might use a 12-hour or even 4-hour heartbeat. Use trip mode to capture departure and arrival, and reserve continuous activity mode or emergency bursts for exceptions. The tighter the reporting interval, the more energy you consume; always pilot different schedules and monitor daily mAh burn before deploying fleet-wide.
Q7: What should I consider when selecting a cellular network or SIM card?
Ensure your SIM supports LTE-M/NB-IoT in the regions where you operate and includes SMS capability for real-time wake. Test attach times and data throughput on each carrier band; some networks have longer paging cycles that can delay SMS delivery. Verify that your roaming agreements cover all legs of your routes; in some markets, fallback to 2G may not be available. For critical assets, consider dual-IMSI or multi-carrier SIMs to reduce dead zones.
Q8: How should data retention and privacy be handled?
Asset tracking inevitably collects location data that could reveal operational patterns or indirectly point to human activity. Define data retention windows aligned with regulatory requirements and your own privacy policy—many companies keep raw location data for 30–90 days and then aggregate or anonymize it. Use geofence labels to avoid storing unnecessary path details; for example, store "arrived at warehouse A" rather than exact coordinates. Document who can access historical data and how it may be used in investigations or audits.
