Designing Battery-Sipping Cellular Trackers: An Engineer’s Playbook

In global supply chains, real‑time visibility isn’t just a buzzword – it’s the bedrock of efficient operations. When pallets go missing in cross‑docks, cold‑chain goods spoil because a door was left ajar or containers vanish in distant yards, the problem isn’t only one of tracking location; it’s about engineering devices that can survive and report under punishing conditions for months or years on tiny batteries. This guide distills lessons from the lab bench and the field to show how ultra‑low‑power cellular trackers are designed, built and deployed in real logistics environments. It sidesteps marketing gloss to offer concrete practices for radio design, power budgeting, firmware state machines, payload schemas, manufacturing QA and long‑term maintenance.

RF as a Budget, Not a Binary

Tracking devices live in the grey zones between full bars and no service. They’re hidden under pallets, bolted to the underside of containers or squeezed into metal trailers. To keep packets flowing in these marginal conditions,

engineers treat RF as a power budget rather than a binary on/off switch.

Host effects matter. An antenna that looks great in simulation can lose 6–12 dB of efficiency once you magnet‑mount the enclosure to steel or saturate it with moisture. Always test radios on the worst plausible mounting – inside a metal container, against damp wood or near human hands. Measure total radiated power and total isotropic sensitivity in these conditions, not just in free space. Base your link budget on the worst case, not the marketing graph.

Diverse fixes beat single‑source GPS. Relying solely on GNSS leads to long wake windows and wasted power. Implement a tiered positioning system where the tracker first attempts a quick GNSS fix and, if it fails, falls back to Wi‑Fi scanning or cell‑ID positioning for a coarse estimate. Many operations need a timely approximate location more than a perfect fix – a cell‑ID location within 200 m may be enough to know which yard an asset is in, saving seconds of GNSS searching. Carefully budget how many seconds you allocate to GNSS (“time‑to‑first‑fix”) before aborting.

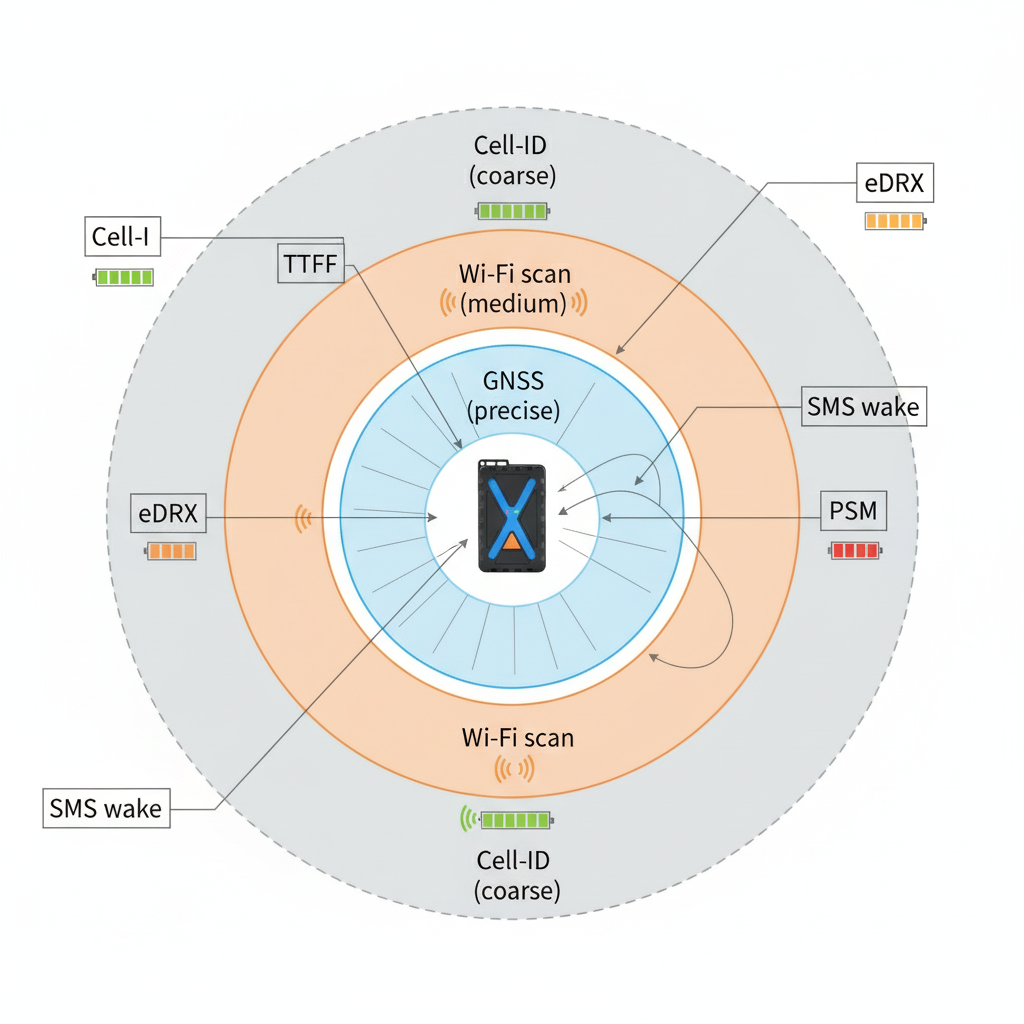

Tiered positioning concept diagram showing concentric rings for GNSS (precise), Wi-Fi scanning (medium) and Cell-ID (coarse) with annotations for eDRX, SMS wake and power saving mode (PSM)

Paging realities. Deep‑sleeping devices must still be reachable. LTE‑M and NB‑IoT networks support extended discontinuous reception (eDRX) so that a device listens for network pages only every few seconds or minutes, dramatically cutting idle current. For emergency commands that can’t wait, keep an SMS wake path: a simple text message can rouse the modem from Power Saving Mode and trigger immediate reporting, even when IP sockets are asleep. Combining eDRX with SMS ensures long battery life without giving up responsiveness.

Power Is Earned in the Seconds You Don’t Spend Awake

“Ultra‑low power” is not a single specification; it’s the sum of dozens of micro‑decisions about when to wake, what to do while awake and when to sleep again. The majority of energy in a battery‑powered tracker is consumed during active states. Reducing the number of wakes helps, but the real savings come from shrinking how long each wake lasts.

A three‑gate wake discipline. Good firmware implements a gatekeeper system before committing to a full session. Gate 1: Is there a legitimate trigger? Use well‑tuned thresholds on motion sensors, temperature excursions or timers and ignore jitter. Gate 2: Is the context meaningful? For example, if motion is below a configured minimum or temperature change is within hysteresis, abort early. Gate 3: Do you have new data to send? If nothing has changed since the last report, go back to sleep. This triage can eliminate 20–30 % of otherwise unnecessary uplinks.

Bound your GNSS window. Cold starts are expensive. Allocate a maximum time budget (e.g. 15 s) for acquiring satellites. If a fix isn’t obtained in that window, transmit the last known location along with the age of that fix and a coarse position from Wi‑Fi or cell‑ID. This approach keeps wake time predictable and battery life under control. Dashboards should display a confidence radius so users understand the trade‑off between accuracy and endurance.

Sample before you wake the radio. If your product monitors vibration events, sample the accelerometer first while the RF sections are still asleep. Abort if the motion pattern doesn’t meet your criteria. Conversely, environmental loggers should batch multiple sensor reads and send them in a single MQTT message rather than waking for each event. Every millisecond saved here translates into days of battery life in the field.

Treat PSM as sacred. After publishing data, explicitly request Power Saving Mode and tear down sockets. Confirm via unsolicited result codes that the modem has entered sleep and that power rails to GNSS and RF are actually turned off. Many products fail their battery promises because a stray GPIO or a leaky regulator keeps part of the circuitry awake, consuming hundreds of microamps around the clock.

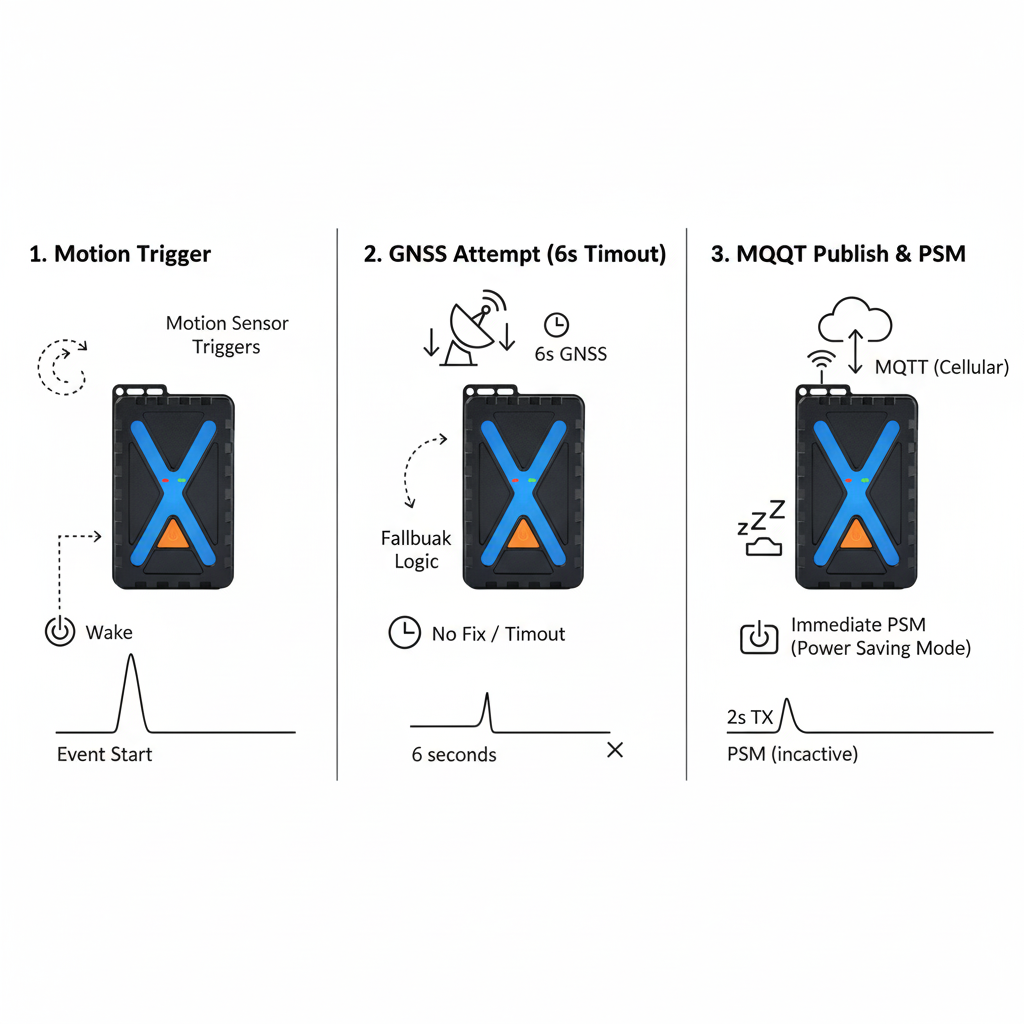

Infographic illustrating a motion-triggered wake cycle with GNSS attempt, MQTT publish and entry into power saving mode (PSM).

Payloads: Small, Stable and Self‑Describing

Each extra byte you send costs energy and increases airtime. On the backend, an unstable or undocumented schema drives integrators crazy. The solution is disciplined payload design.

Use concise JSON. JSON is perfectly acceptable if you keep it lean. Pick short, canonical keys and include optional blocks rather than renaming fields. A typical message might look like:

{
  "ts": 1739786400,
  "dev": "g48x-8F2A",
  "seq": 4182,
  "loc": {"type":"gnss","lat":31.2304,"lon":121.4737,"acc":12},
  "env": {"t":3.1,"h":58,"l":0},
  "act": {"m":1,"g":0.42,"shock":0},
  "pwr": {"vb":3.62,"pct":74},
  "flags": ["cold","edrx:40.96s"]
}

Never delete or rename existing keys; instead, add new optional fields as your product evolves. Always include location accuracy (acc) and type (GNSS, Wi‑Fi, cell‑ID) so your backend knows how to interpret positions. Include battery voltage and firmware revision so you can correlate anomalies with hardware and software versions.

Design MQTT topics that scale. For a multi‑tenant deployment, organise topics along the lines of iot/{org}/{fleet}/{device}/up for uplinks, /evt/{alarm} for events and /cfg/desired for configuration requests. Devices can publish their current configuration to /cfg/reported and subscribe to /cfg/desire

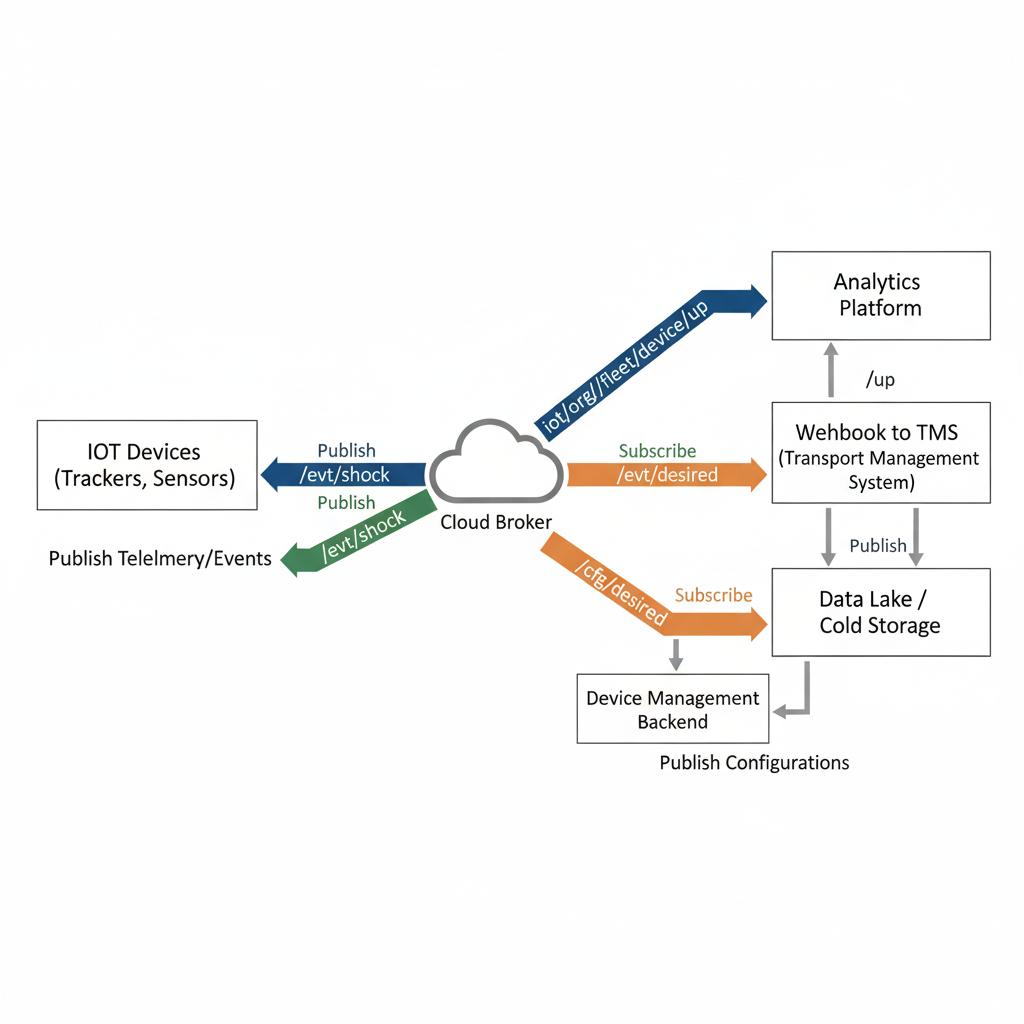

Diagram of IoT MQTT topic flow showing cloud broker routing telemetry/events from trackers to analytics, TMS, data lake and device management backend via /evt/shock, /evt/desired and /cfg/desired topics.

d. Use retained messages for desired configuration so that a tracker coming out of the box immediately knows how to behave without manual provisioning. Keep downlink messages tiny; large blobs belong in HTTPS pull requests.

The State Machine Is Your Product

Low‑power hardware is nothing without firmware that handles edge cases gracefully. A tracker’s life is effectively a state machine with a handful of states – sleeping, evaluating triggers, acquiring location, publishing data, backing off after a failure – and explicit guards controlling transitions.

Simplify the design: maintain a core loop like SLEEP → WAKE_EVAL → ACQUIRE → PUBLISH → BACKOFF → SLEEP. Encode as much logic as possible into the guards rather than proliferating sub‑states. Document this state machine clearly – a single page of pseudocode or a DOT diagram taped above your bench helps everyone understand how the firmware behaves. It also allows you to instrument transitions: emit reason codes for each state change, along with durations. Over weeks of logs, you’ll see whether GNSS acquisition time is creeping up after a carrier firmware upgrade or whether publish failures correlate with particular networks.

Implement a brown‑out policy: track battery voltage under load and refuse to perform power‑hungry operations below a threshold. If publishes fail repeatedly, widen reporting intervals. After a certain number of consecutive failures, park in a long sleep and wake only on significant motion or the next scheduled heartbeat. This protects against deep discharge and phantom messaging storms.

Manufacturing and Certification Without Drama

No product ships until a lab has signed off on it. Certification is rarely glamorous, but ignoring it can delay launches by months. Bake compliance considerations into your design from day one.

Pre‑compliance early. Before investing in polished enclosures and expensive tooling, test the ugliest prototypes. Use mismatched coax and hand‑assembled boards to simulate worst‑case RF performance. If this early unit passes emissions and immunity pre‑scans, your final product likely will too.

Plan for antenna coexistence. Many failures stem from GNSS receivers being saturated by harmonics from the LTE modem. Budget filters early and test GNSS carrier‑to‑noise ratio (C/N0) while the modem bursts on all bands you plan to ship. For devices that live in metal cavities, you might need a tuned antenna or external pigtail. Don’t rely on paper calculations; measure.

Simplify SKUs. Use modules with a superset of bands and configure band masks in firmware to build regional variants without maintaining separate PCBs. Every extra SKU adds complexity to QA and supply chain management.

Test current profiles on the line. It isn’t enough to see that a device powers up. Put every board through an automated jig that measures deep‑sleep current. Reject anything above spec (for example 15 µA). Capture and store these measurements – six months later, you may trace a batch of bad regulators to a part substitution.

Environmental soaks. Combine thermal cycling with logging. Each unit should emerge

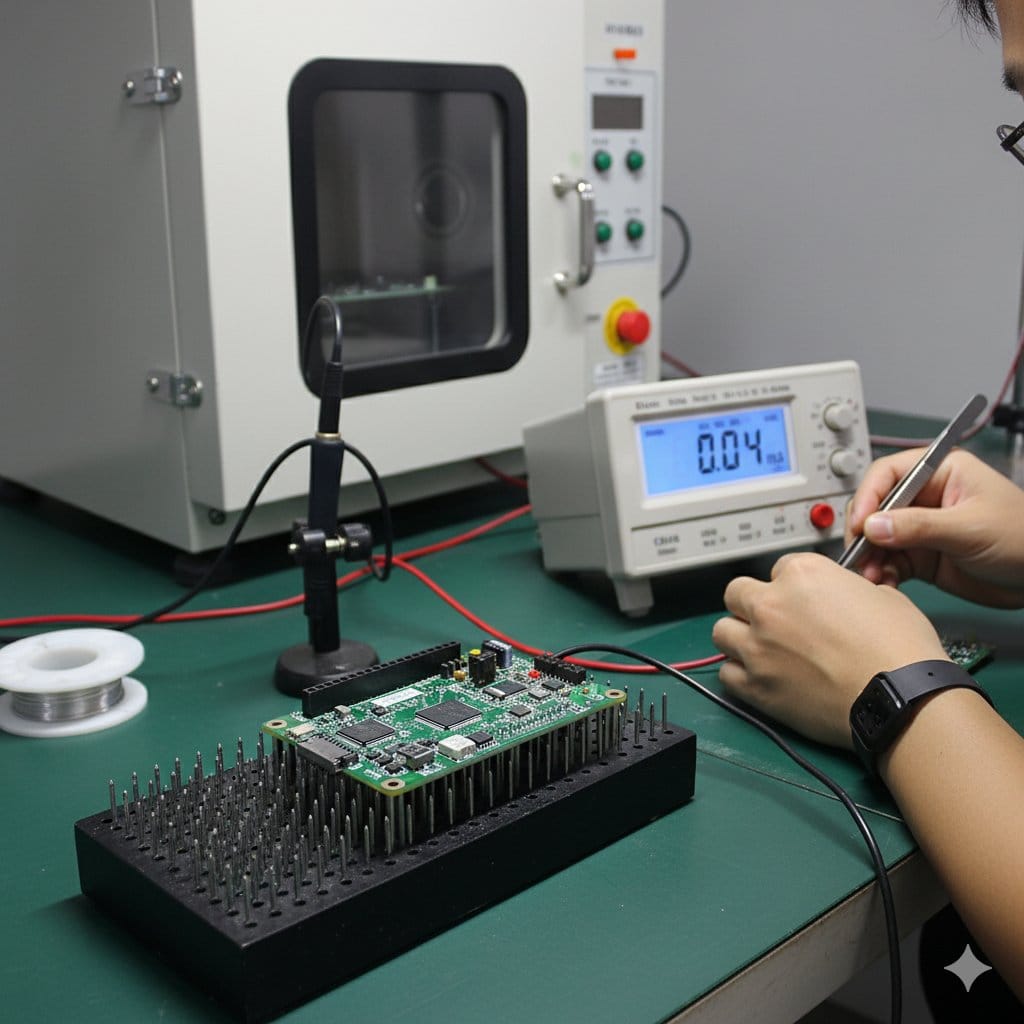

Engineer measuring deep-sleep current on an IoT tracker circuit board using a bed-of-nails test fixture and microamp meter in a lab setting.

from a soak test with a report of sensor readings, GNSS acquisition times and radio attach attempts. This log becomes your early‑life failure radar. Validate tamper sensors per lot; injection‑molded plastics and adhesives vary and can change the light‑sensor thresholds you calibrated in the lab.

Deployment Playbooks That Avoid Truck Rolls

loying thousands of trackers across fleets, pallets and facilities introduces operational costs far beyond the hardware bill. A few practices can save hundreds of labour hours.

Label and provenance. Print QR codes with the device ID, IMEI, firmware revision and band mask. When a tracker misbehaves in Peru, an operator can scan the label and resolve most issues from their browser rather than rummaging through spreadsheets.

First‑boot contract. On first power‑on, the tracker should perform a self‑test, send a single “hello” message with its manufacturing data, and fetch its configuration from the cloud. If no configuration is present within a timeout, fall back to conservative defaults and enter sleep. This eliminates complex pairing workflows in the field.

Exception modes with fuses. High‑rate live tracking (for theft recovery, reroutes or investigations) is useful but can torch batteries in days. Implement an emergency mode with an auto‑exit fuse: after a defined period (e.g. 90 minutes) or after the asset returns to a geofence, the firmware reverts to normal cadence. This protects against human forgetfulness.

Anchor your processes in field‑ready guidance. For a practical buyer’s guide to selecting rugged devices and planning deployments, see our post on asset tracking devices that scale – it covers device types, sensor choices and ROI considerations. And for an insider look at how NB‑IoT trackers are developed, from lab benches to firmware iterations, read our behind‑the‑scenes story on NB‑IoT tracker development.

Honest Battery Math

Customers inevitably ask, “How long will it last?” The honest answer is a range – with assumptions laid bare. Presenting the maths not only builds trust but shapes product design.

Write this calculation into your specification or service‑level agreement, not just your marketing slides. Buyers deserve clarity.

Data You Actually Use Beats Data You Hoard

The allure of big data tempts teams to collect every sensor reading at high frequency. Resist this impulse. Define a small set of actionable alerts (e.g. motion outsi

Cold-chain alert scene: crates of fruitsnd vegetables inside a refrigerated trailer, with a sensor tag on the crate and a smartphone displaying a temperature excursion alert.

de a geofence, temperature excursion, prolonged silence, tamper event) with clear playbooks. Send daily roll‑ups summarising minima, maxima and averages rather than raw streams. Train your operators to “garden” alerts: every week, pick the noisiest rule and refine thresholds, hysteresis or firmware logic until it quietens. Silence is a key performance indica

.Where the Stack Is Heading

The cellular IoT ecosystem is evolving rapidly:

Conclusion: Engineering Practical Tracking Solutions

Designing ultra‑low‑power cellular trackers for real logistics scenarios demands a holistic view. It’s not enough to choose a low‑power modem; you must respect the RF environment, ruthlessly optimise wake cycles, define stable payloads, instrument your firmware state machine, bake compliance into your hardware design, and plan for deployment and maintenance in the field. By following the practices described in this guide, engineers and operations leaders can build devices that quietly do their job for years, waking only when there’s something new to report.

For more ideas on how to evaluate and deploy rugged devices, explore our asset tracking devices guide or

dive into our NB-IoT tracker development story available in our blog’s Asset Tracking
