Introduction
Modern logistics, equipment rental and fleet operations demand tracking devices that can function autonomously for months or years. Eelink’s GPT48‑X GPS tracker answers this need by combining a high‑capacity primary battery with low‑power cellular connectivity and multi‑GNSS positioning. Unlike consumer units, it is wire‑free—hidden magnets allow installation on trailers, containers or machinery without wiring—and its rugged, IP65 enclosure protects the internal electronics. This condensed report summarises the full technical report for decision‑makers who need an overview of the device’s capabilities, design and use cases. The focus is on essential features and practical insights rather than exhaustive specifications.
Product Purpose and Key Features
The GPT48‑X fills a niche in the IoT landscape: long‑term asset tracking without external power. Logistics companies frequently move containers or trailers over long distances, and retrieval of devices for charging is impractical. By using a primary lithium battery and ultra‑low‑power LTE Cat‑M1/NB‑IoT modem, the GPT48‑X delivers up to five years of operation in standby mode. Its magnets permit quick, tool‑free installation on ferrous surfaces; adhesive or brackets can be used for non‑metallic mounting. The ability to stay dormant yet responsive reduces total cost of ownership and labour.
The device’s core features include:
- Energy efficiency: Long Standby Mode wakes the tracker only when scheduled or when motion triggers the accelerometer. Reporting intervals are user‑configurable; 24‑hour check‑ins maximise battery life while more frequent updates trade longevity for timeliness.
- Emergency tracking: Users can remotely switch the unit into Emergency Mode via SMS or cloud command. In this state the modem and GNSS receiver remain powered to provide frequent updates, enabling real‑time location data during theft or critical operations. The mode is time‑limited to preserve battery.
- Multi‑GNSS capability: A dedicated receiver supports GPS, GLONASS and BeiDou, improving accuracy and availability. If satellites are obstructed (e.g., inside a container), the device can estimate position using cellular network triangulation.
- Low‑power LTE Cat‑M1/NB‑IoT: Support for these bands gives the tracker global reach while consuming less energy than traditional 2G/3G networks. SMS commands allow control when data connectivity is intermittent.
- Sensors and alarms: An on‑board 3‑axis accelerometer senses movement and shock. Sudden impacts trigger immediate alerts and may cause the device to enter Emergency Mode. Some versions incorporate light sensing to detect removal from dark enclosures.
- Rugged design: The enclosure is made from durable ABS/PC plastics and achieves an IP65 ingress rating, meaning it is dust‑tight and withstands water jets. Magnets and screws secure the back cover, protecting the SIM and battery. Operating temperatures span –20°C to +60°C.
Technical Architecture and Power Management
Internally, the GPT48‑X consists of three primary subsystems: a cellular IoT modem, a multi‑GNSS receiver and a power management unit. These are orchestrated by firmware running on a microcontroller integrated into the modem. The cellular module supports LTE Cat‑M1 and NB‑IoT, and may offer fallback to SMS for command and control. The GNSS engine uses a ceramic antenna integrated into the plastic casing and can track multiple constellations simultaneously. A high‑capacity, non‑rechargeable lithium battery provides energy; because it lacks charging circuitry, the tracker eliminates failure modes associated with rechargeable cells.
Operating Modes
The firmware implements two modes:
- Long Standby Mode: Only a low‑power timer and the accelerometer remain active between transmissions. During each wake cycle, the device acquires a GNSS fix, sends a data packet and then returns to sleep. Motion events can interrupt the sleep cycle and prompt an unscheduled update.
- Emergency Mode: When activated by an alarm or remote command, the modem and GNSS remain powered to supply frequent updates (e.g., every minute). This mode is used during theft detection, accidents or important operations. Because it consumes more energy, the firmware may revert to Standby after a defined period or on user instruction.
Firmware and Security
The tracker communicates using Eelink’s proprietary protocols via TCP/UDP data streams and can send SMS messages for critical alerts. Firmware updates are possible over the air, ensuring that security patches and improvements can be applied without retrieving the device. The SIM card resides in a sealed compartment accessible by removing screws, preventing tampering. In addition to network encryption inherent to LTE, the device’s IMEI and platform authentication ensure data integrity and confidentiality.
Hardware Design and Specifications

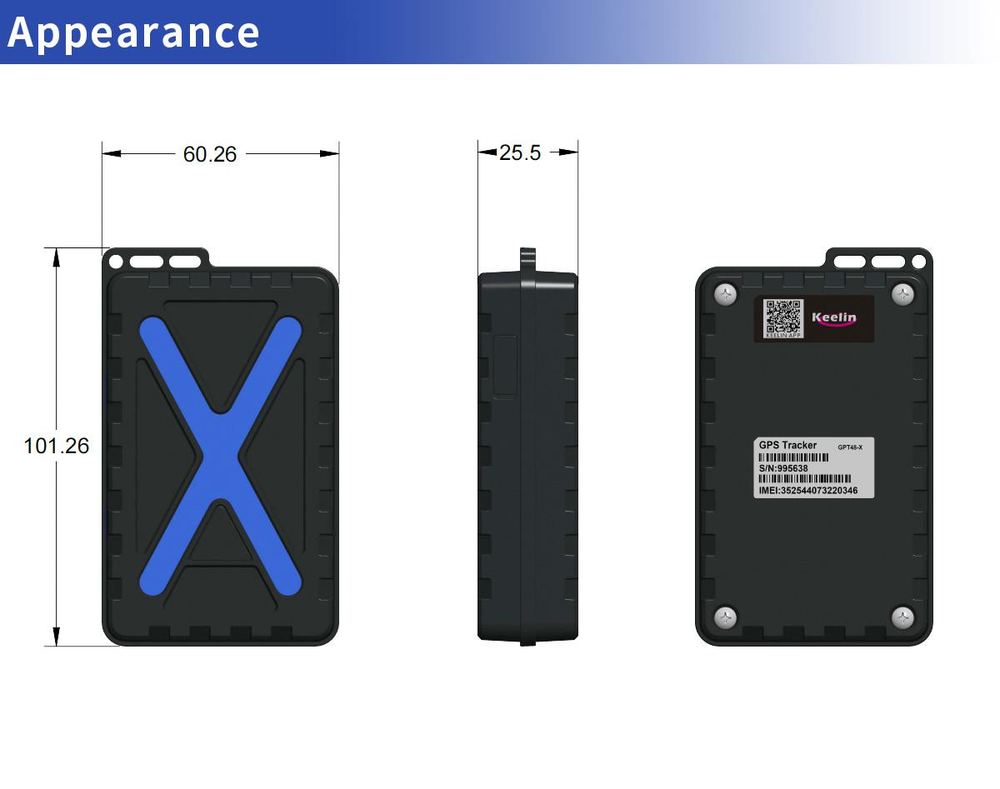

Although this report focuses on functionality rather than exhaustive specifications, a brief overview of the physical design is useful. The GPT48‑X measures roughly 101×60×25 mm and weighs about 130 g, making it easy to conceal on equipment. Its rugged shell houses the integrated antennas, battery, modem and sensors. The back cover is fastened with four screws and holds a nano‑SIM slot. Strong magnets embedded in the housing provide secure adhesion to ferrous surfaces, yet allow removal for servicing. The IP65 rating ensures dust tightness and resistance to water jets, though the device is not intended for prolonged submersion. A temperature operating range of –20°C to +60°C suits most logistics and industrial environments.
Connectivity and Positioning
Cellular Networks
Support for LTE Cat‑M1 and NB‑IoT gives the tracker broad coverage across carriers in multiple regions. LTE‑M provides higher data rates and mobility support compared to NB‑IoT, making it better suited for assets that move between cells frequently. NB‑IoT offers deep penetration and better battery efficiency but may not be available in all areas. Because 2G and 3G networks are being decommissioned globally, Eelink’s reliance on modern LPWAN standards future‑proofs the device. Commands can also be sent via SMS, enabling remote control even where packet data connectivity is poor.
GNSS and Assisted Positioning
A key differentiator of the GPT48‑X is its multi‑constellation GNSS receiver, which can listen to satellites from GPS (USA), GLONASS (Russia) and BeiDou (China). Access to multiple satellite networks improves position accuracy and reduces time to first fix. In environments where satellite reception is blocked, the tracker falls back to cellular positioning. Though less accurate, cellular localisation ensures that the platform always has an approximate asset location. The device reports battery voltage alongside position, enabling remote monitoring of battery health.
Installation and Environmental Considerations

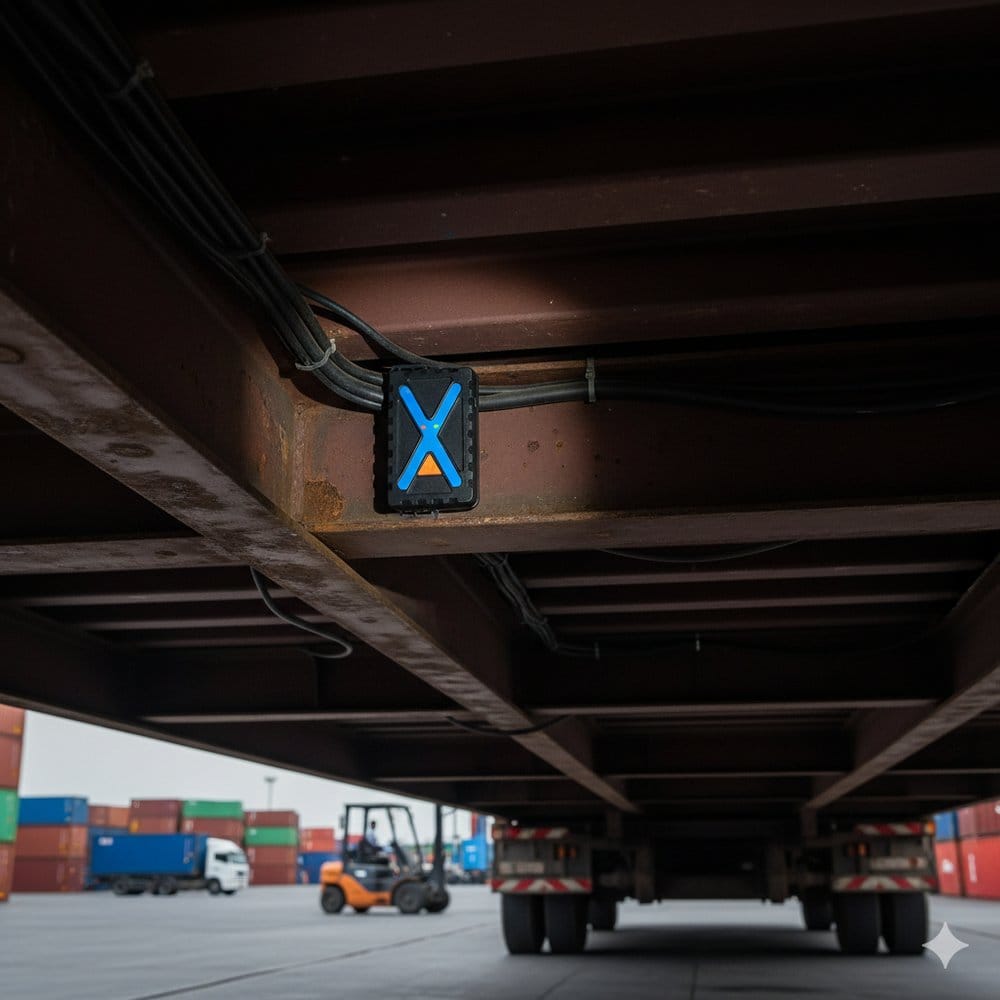

The installation process is straightforward: remove the adhesive film protecting the magnets and place the device onto a clean, ferrous surface. The magnets ensure firm attachment; if installed on non‑metal surfaces, optional adhesive pads or mounting brackets can be used. Because there is no wiring, installation takes minutes and does not require specialised skills. The rugged housing and IP65 rating ensure the device withstands rain, dust, vibration and occasional impacts. For installations in extreme environments (e.g., marine or heavy construction), additional protective housings may be advisable, though for most logistics and fleet applications the standard enclosure is sufficient.
Sensors and Alerts
Motion Detection and Alarms
A built‑in three‑axis accelerometer serves multiple purposes. It enables the device to detect movement, shock and orientation changes. In Standby Mode, the accelerometer is one of the few sensors that remains active; if motion exceeds a threshold, the device wakes to send a location update. This prevents the device from “sleeping through” a theft or unauthorised movement. The accelerometer can differentiate between normal vibrations (e.g., road bumps) and significant motion, reducing false alarms. If the sensor detects a sudden drop or strong vibration—indicating the device has been removed or the asset is being tampered with—it can trigger a vibration or drop alarm and switch to Emergency Mode.
Light and Tamper Sensors
Some versions of the GPT48‑X incorporate a basic light sensor. When installed in dark locations (e.g., under a trailer or inside a container), sudden exposure to light on removal can indicate tampering. The device can then send a drop alarm. Although not all models advertise the light sensor, the inclusion of such a feature demonstrates the manufacturer’s focus on tamper detection.
Applications and Benefits
The long‑battery design, rugged construction and dual communication modes make the GPT48‑X suitable for diverse uses. Key applications include:
- Shipping and container tracking: Monitor containers throughout sea and land journeys without needing to access the tracker mid‑transit. The long battery life means the device can remain active across multiple voyages.
- Trailer and fleet management: Track trailers or chassis that are detached from tractors. The magnetic mount makes repositioning across different trailers easy, while the accelerometer alerts operators to unauthorised movement.
- Construction and heavy equipment: Attach the device to excavators, generators or rental machinery to deter theft and monitor utilisation. Real‑time alerts help recover equipment quickly if it is moved unexpectedly.
- Cold chain and environment‑controlled shipments: Because the device operates down to –20°C, it can accompany refrigerated cargo, offering proof of location and security without affecting contents.
- Asset security for high‑value goods: Integrate the tracker into shipments of high‑value items (electronics, pharmaceuticals) to ensure chain of custody. Should a theft occur, Emergency Mode delivers real‑time tracking to assist recovery.
- Infrastructure monitoring: Utilities and telecom operators can deploy units on remote infrastructure like cable drums, mobile generators and field equipment to prevent loss and to track deployment schedules.
Each of these applications benefits from the device’s long battery life and minimal maintenance requirements, allowing businesses to focus on operations rather than device upkeep.
Comparison with Newer Models
Eelink has since released GPT50 and other models that extend the GPT48‑X platform. The GPT50 adds LTE Cat‑1 support (higher bandwidth but more power consumption), optional rechargeable batteries, and additional sensors (such as temperature and more precise tamper detection). These enhancements make the GPT50 suitable for more complex IoT applications or environments requiring richer data. However, the GPT48‑X remains relevant due to its balance of cost, battery life and simplicity. Organisations should weigh the need for advanced features against the lower operational burden offered by the GPT48‑X.
Conclusion
The Eelink GPT48‑X is a robust, long‑life GPS tracker designed to provide years‑long asset visibility without the need for external power or frequent servicing. By integrating power‑efficient LTE Cat‑M1/NB‑IoT connectivity, multi‑GNSS positioning and a high‑capacity primary battery within an IP65 magnetic enclosure, the device offers a deploy‑and‑forget solution for logistics and asset management. Dual operating modes, sensor‑driven alarms and optional light sensors enable operators to balance power consumption against situational awareness. While newer models offer additional features, the GPT48‑X delivers a compelling blend of longevity, reliability and cost effectiveness for scenarios where basic location tracking and theft detection are paramount. For fleet managers, rental companies and supply chain operators, this tracker provides peace of mind and improved operational effic
efficiency, proving that sometimes simplicity and endurance are the ultimate features.
For deeper insights into long-term asset tracking, read our article on GPT48-X: Revolutionising Long-Term Asset Tracking with Ultra-Long Battery Life.
FAQs & Best Practices
Q1: How long can the GPT48 -X operate on battery?
The GPT48 -X is designed for multi‑year deployments. In long‑standby mode with one position report per day, the integrated lithium battery can power the device for up to five years. Real‑world endurance depends on configuration and network coverage: more frequent reports, extended GNSS fix times or poor signal conditions increase consumption. Users can monitor remaining voltage via the management portal and schedule proactive replacements.
Q2: Does the magnetic mount hold on all surfaces?
The tracker uses neodymium magnets for secure attachment to ferrous materials such as steel and iron. For non‑metal surfaces (plastic, aluminum or wood), optional adhesive pads or mechanical brackets should be used. Before deployment, test the magnet on the asset's surface and ensure the device is oriented with the antenna side facing the sky for optimal reception.
Q3: Will it work in remote areas with limited network coverage?
GPT48 -X supports LTE‑Cat M1 and NB‑IoT networks with fallback to GSM SMS. In areas with weak network coverage, the device will store position events and upload them when coverage returns. Assisted GNSS and cellular positioning help maintain location accuracy when satellites are obstructed. For critical assets moving through RF shadow zones, consider equipping a version with satellite IoT connectivity.
Q4: How can I maximise battery life?
Choose the lowest reporting frequency that meets operational requirements; enable motion‑based wake‑up to avoid unnecessary transmissions when stationary; ensure a clear view of the sky to reduce GNSS fix time; configure idle‑mode or cargo‑mode for static assets; and keep firmware updated to benefit from efficiency improvements. Avoid using real‑time tracking for long durations unless an emergency.
