Overview
The GPT48-X is a 4G asset tracker designed for logistics and asset protection. Powered by an 8000 mAh lithium-manganese battery with zero self-discharge, the device can report a location heartbeat once per day for up to five years. Supporting LTE-M and NB-IoT networks, and using multi-constellation GNSS (GPS/BeiDou/GLOSNASS) with fallback to LBS and Wi-Fi positioning, GPT48-X delivers reliable connectivity and accurate tracking anywhere in the world. Its built-in motion sensor wakes the device when vibration is detected and supports remote wake-up by SMS, allowing it to switch from low-power mode to real-time tracking during emergencies. Rugged magnetic mounting makes installation quick and easy, while multi-layer alarms (vibration/drop/collision, geofence, tamper and low battery) ensure assets are protected. The tracker integrates seamlessly with Eelink’s cloud platform and third-party systems, and supports over-the-air (OTA) firmware updates.
Key Features
- Ultra-long battery life – 8 000 mAh lithium-manganese battery with zero self-discharge provides up to five years of standby with one daily heartbeat. The device intelligently switches to low-power mode when idle and can be woken remotely by SMS.
- Low-power network connectivity – Supports LTE-M and NB-IoT networks for low-power, low-cost communication, with fallback to 2G where available.
- Precise positioning – Uses multi-constellation GNSS (GPS/BeiDou/Glonass) for fast, accurate location fixes with 2 m typical accuracy. When satellites are unavailable the device falls back to LBS and Wi-Fi positioning for continuous tracking.
- Intelligent sensors and alarms – Built-in motion and vibration sensors detect movement and support wake-up on motion. Multi-layer alarms notify of vibration, drop, collision, tamper and low battery events. Geo-fence and route deviation alarms can be configured via the platform.
- Remote configuration & OTA updates – Work modes and reporting intervals can be configured remotely via SMS or the management platform. Over-the-air firmware updates keep the device secure and add new features.
- Flexible working modes – Long-standby mode reports location periodically (e.g. once per day) for years, while emergency real-time mode increases reporting frequency for accurate tracking when an incident occurs.
- Rugged magnetic design – Compact and waterproof (IP67) housing with built-in industrial magnets allows easy attachment to metal surfaces such as containers, trailers and heavy equipment. Device dimensions are approximately 101.3 × 60.3 × 25.5 mm and weight is about 130 g.
- Platform integration – Compatible with Eelink 2.0 management platform and third-party systems. Data can be viewed on dashboards, exported, and integrated into logistics software via APIs.
Technical Specifications
- Battery: 8 000 mAh 3 V lithium-manganese battery, zero self-discharge. Up to 5 years standby (heartbeat every 24 h).
- Network: LTE-Cat M1 / NB-IoT; fallback to 2G in some regions.
- Positioning: GPS, BeiDou, Glonass (GNSS) with LBS/Wi-Fi fallback; typical accuracy 2 m.
- Sensors: Motion, vibration, drop/collision detection, temperature sensor.
- Size & Weight: 101.3 × 60.3 × 25.5 mm; 130 g.
- Operating Temperature: –20 °C to +60 °C.
- Water & Dust Resistance: IP67.
- Mounting: Industrial magnets; optional bracket.
- SIM card: Nano SIM.
- Interfaces: OTA firmware upgrade and configuration via SMS/OTA; optional USB charging/upgrade port.
Typical Applications
- Long-haul trucking and trailer management – Attach GPT48-X to trailers or tractor units to monitor location, motion and security during long journeys. The device’s long battery life supports multi-year deployments without maintenance; remote wake-up means it can switch to real-time tracking during theft or hijacking events.
- Shipping containers and pallets – Securely magnetically mount the tracker to shipping containers, pallets or totes to monitor location across supply chains and improve visibility of ocean and intermodal shipments. Geo-fence alarms can detect unauthorised movements.
- Railcars & heavy equipment – Track railcars, excavators, generators and other heavy equipment to prevent theft and manage utilisation. Vibration and tamper alarms send alerts if equipment is moved unexpectedly.
- High-value assets – Deploy the tracker on high-value assets such as mobile power units, rental equipment or telecom enclosures to provide security and asset management.
- Smart agriculture & livestock – Use the tracker on livestock trailers, farm equipment or containers to monitor location and ensure animals or cargo stay within designated boundaries.
- We recommend using multiple trackers across large fleets to improve visibility, reduce losses and enhance operational efficiency. The device’s multi-year battery life and minimal maintenance requirements deliver total cost ownership advantages. advantages.
Installation & Operation
- Mounting – Ensure the device is fully charged and insert a nano SIM card. Affix GPT48-X to a clean metal surface using the built-in magnets or optional bracket. For non-metal surfaces, use adhesive or secure mounting hardware.
- Power on & work mode – Press and hold the power button until the indicator flashes to power on. The device will enter long-standby mode by default, reporting location at the configured interval.
- Configuration – Configure reporting intervals, geo-fences and alarms via the management platform or by sending SMS commands to the device. Switch to real-time mode during emergencies by sending a wake-up SMS; the device will increase reporting frequency but reduce battery life accordingly.
- Monitoring & alerts – View location history, battery status and alarms on the web or mobile app. Set up email/SMS notifications for geofence breaches, vibration/drop events, or low battery.
- Maintenance – When battery runs low, follow the manual to replace the battery or recharge if supported. Perform OTA firmware updates regularly via the platform.
Downloads
& Resources
2.0 Platform – Manage your devices, configure alarms and view analytic
Product Gallery

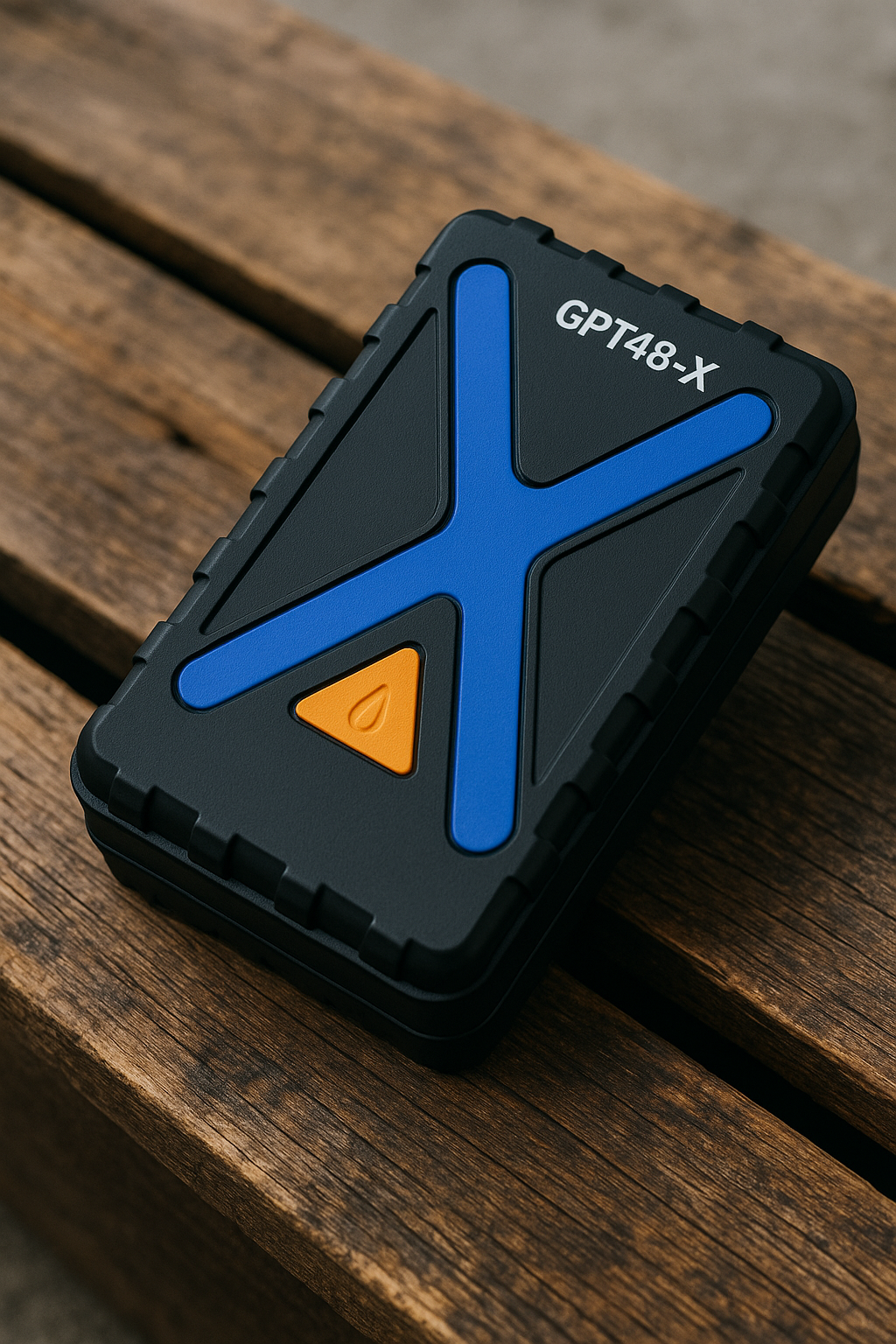

Here’s a detailed view of the GPT48 ‑X tracker. The device features rugged, IP67‑rated housing and a magnetic mounting base for quick installation on metal surfaces.
/file

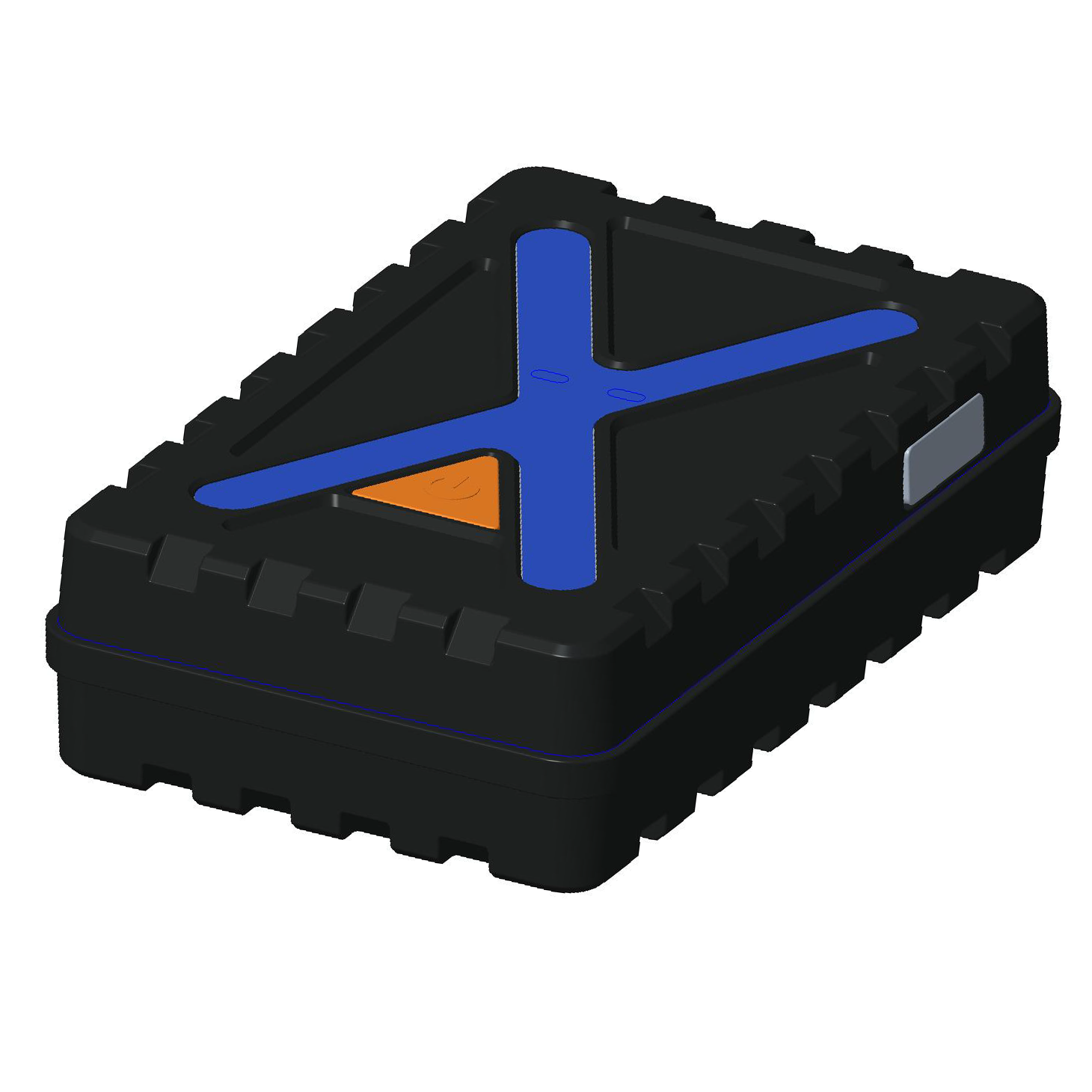

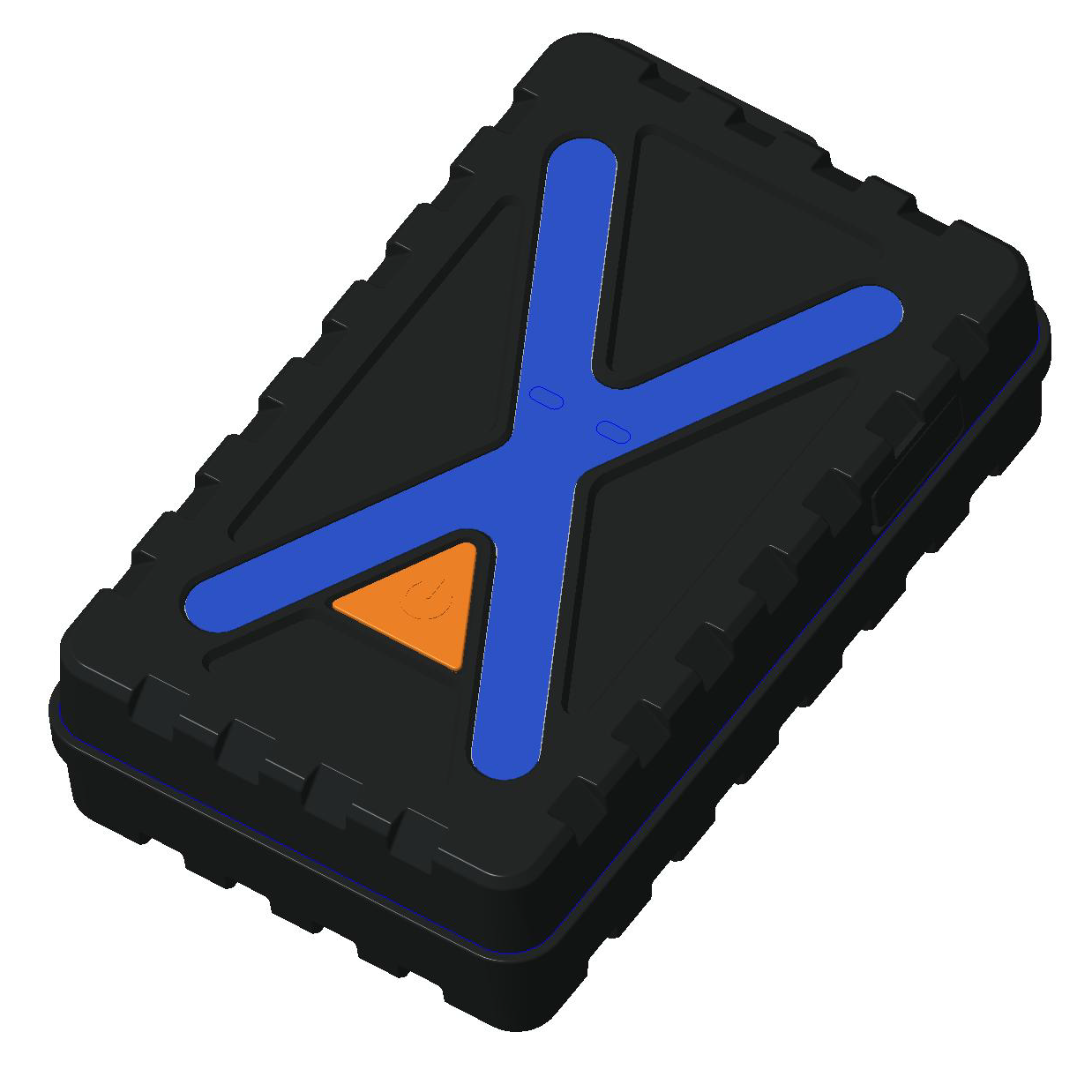

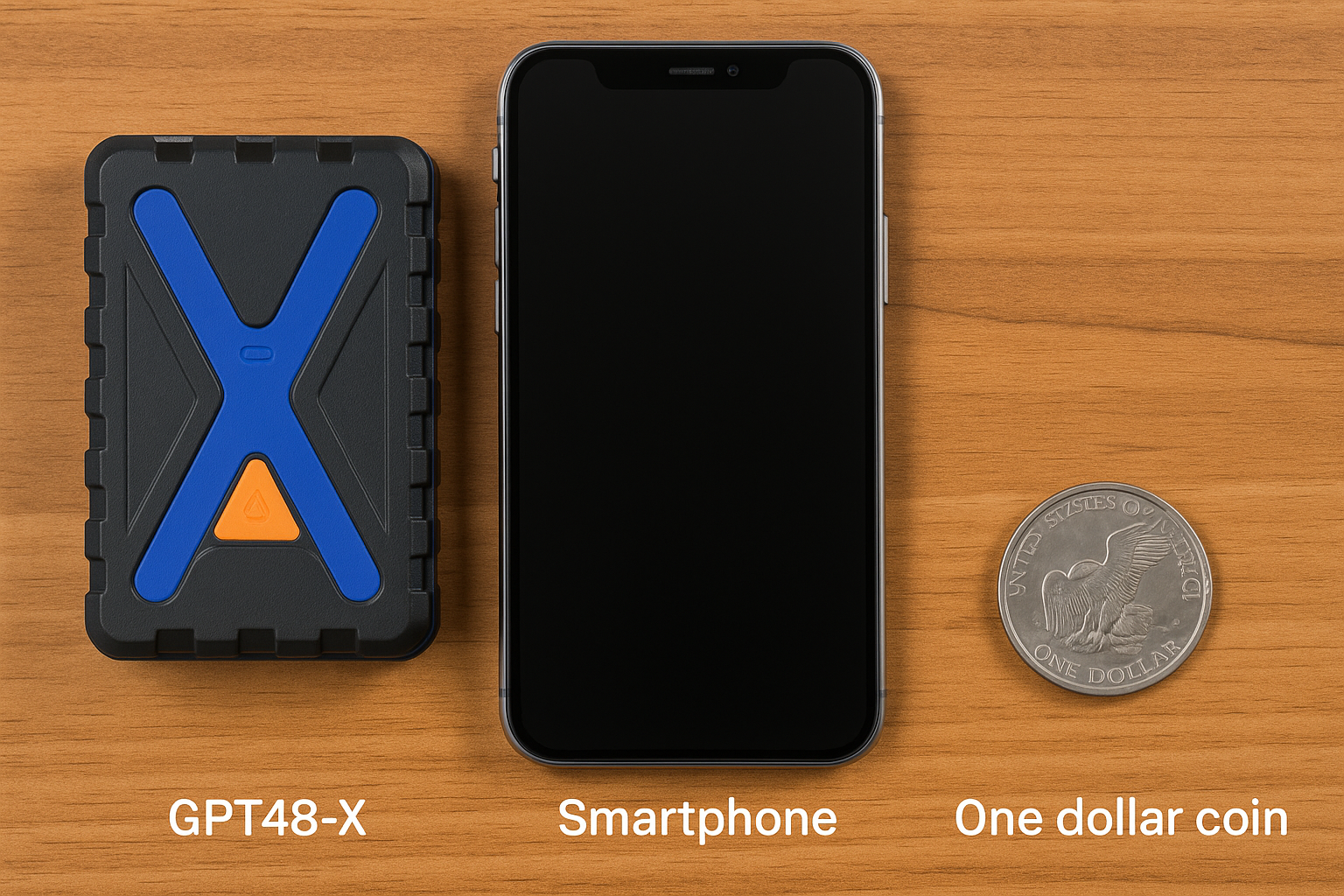

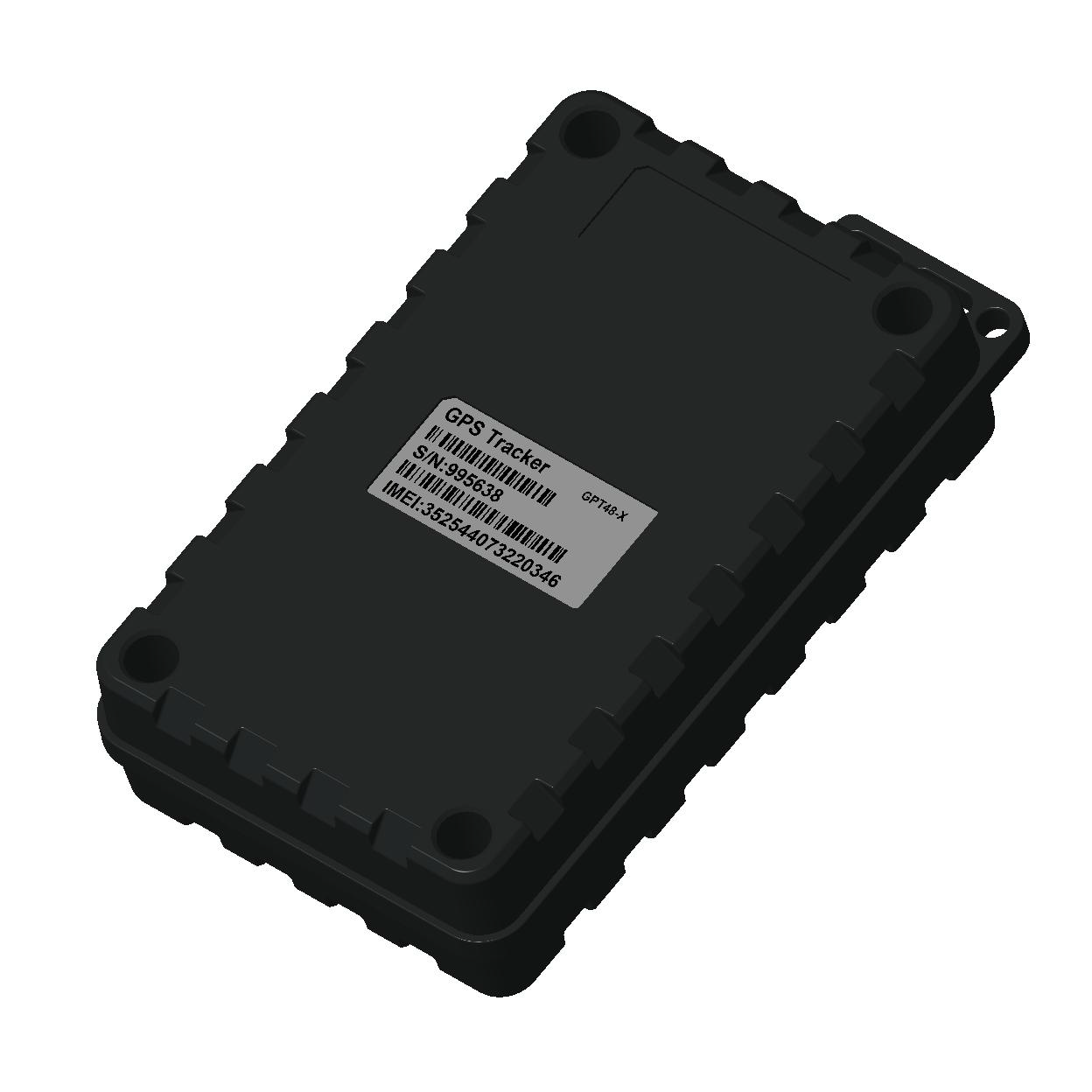

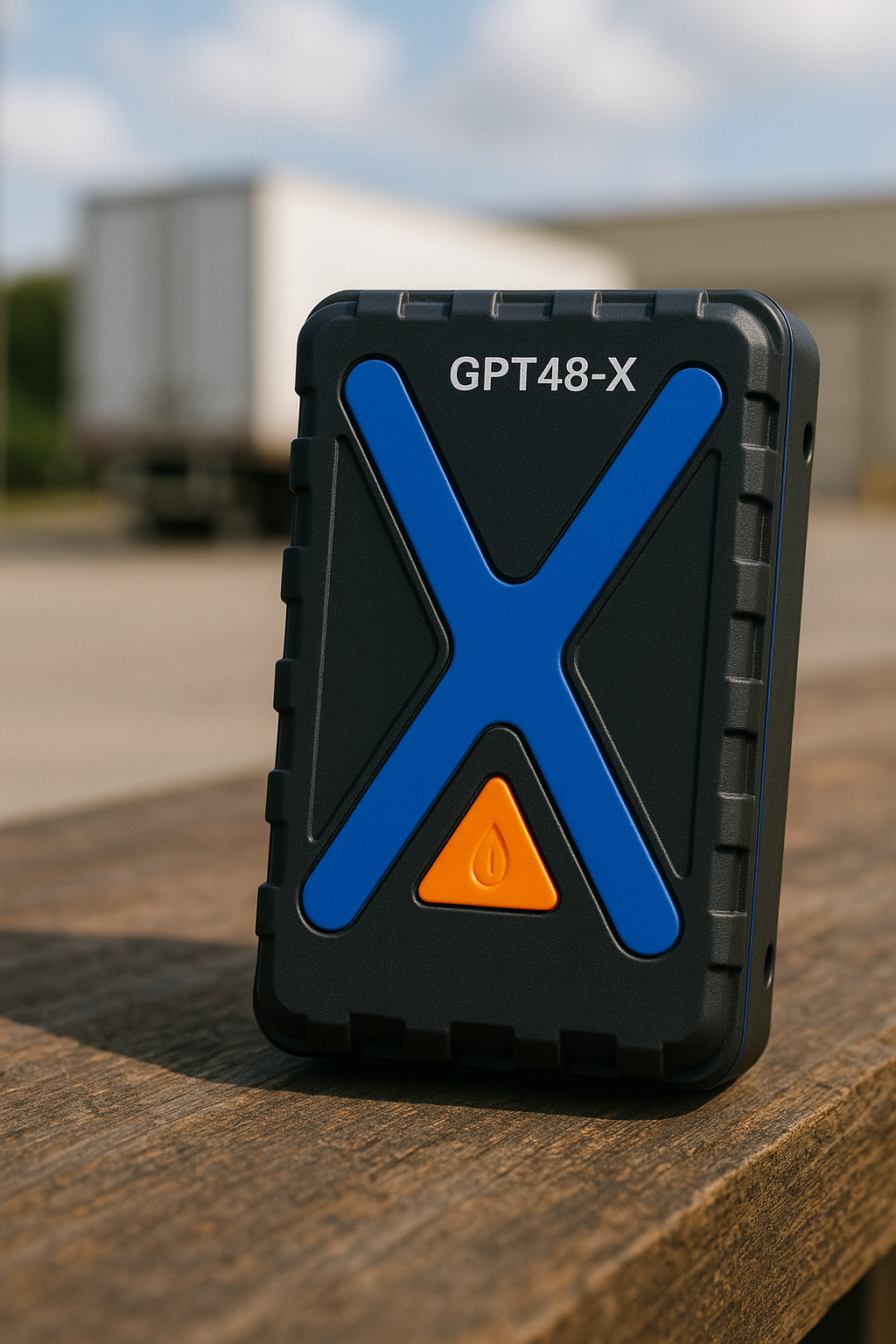

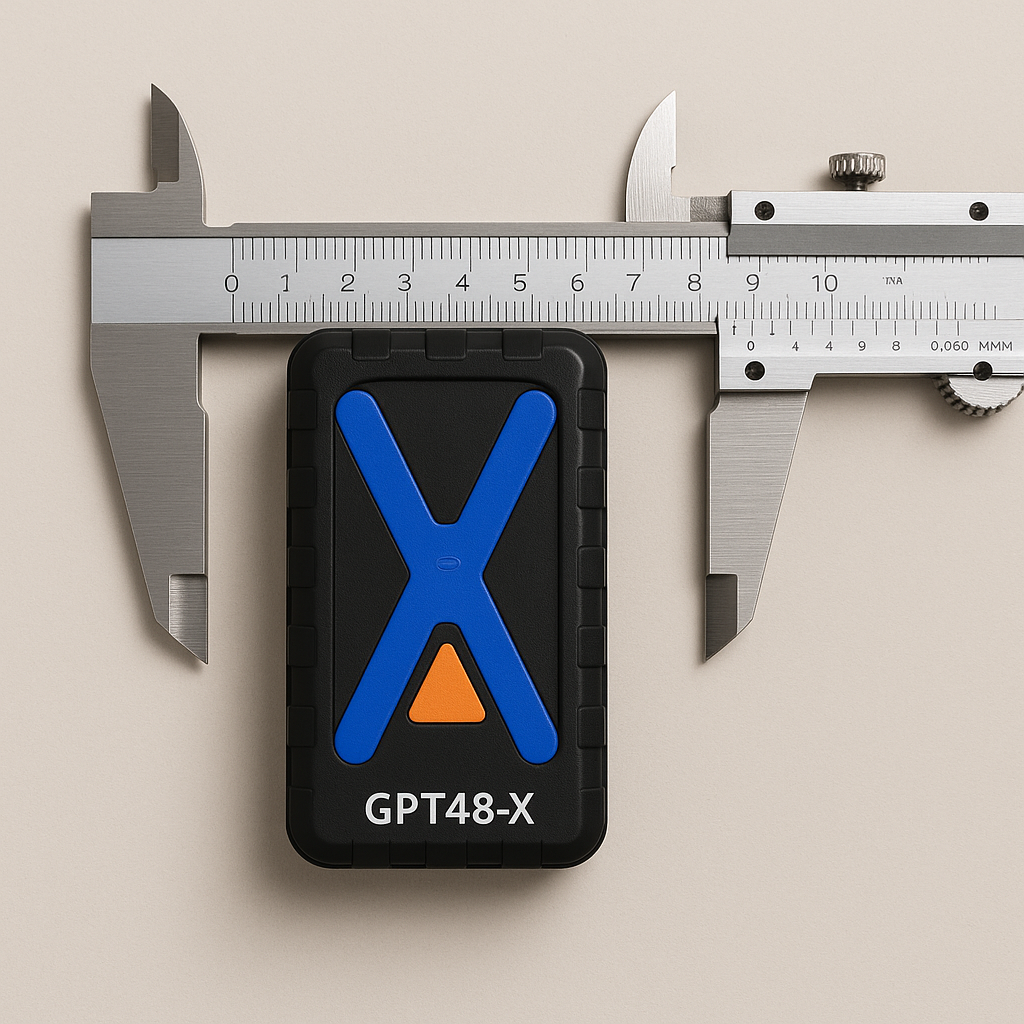

Multiple views of GPT48-X: front/side/back, hero close-ups, dimension measurement and size comparisons with smartphone and coin.
Conclusion
GPT48-X combines ultra-long battery life, versatile connectivity, precise positioning and intelligent alarms to deliver a professional asset tracking solution. Whether safeguarding shipping containers, trailers or heavy equipment, GPT48-X reduces losses, enhances utilisation and simplifies logistics management. With remote configuration and OTA updates, the tracker evolves over time to meet new challenges. Contact Eelink or your distributor to learn more and order GPT48-X for your fleet today.
Installation & Mounting Demonstration
Here’s how GPT48 ‑ X can be installed on your assets. The device’s strong magnets allow quick placement on metallic surfaces such as the chassis of containers, trailers or heavy equipment. For optimal performance, mount the tracker with its antennas facing skywards and ensure it has clear line of sight to GNSS satellites. Use the included installation guide to configure work modes and verify connectivity.
Application Scenes
The GPT48 - X excels across a variety of real‑world scenarios. From tracking long‑haul trucks and railcars to monitoring construction machinery and livestock on remote farms, the device ensures critical assets remain visible and secure. Explore some typical use cases below.

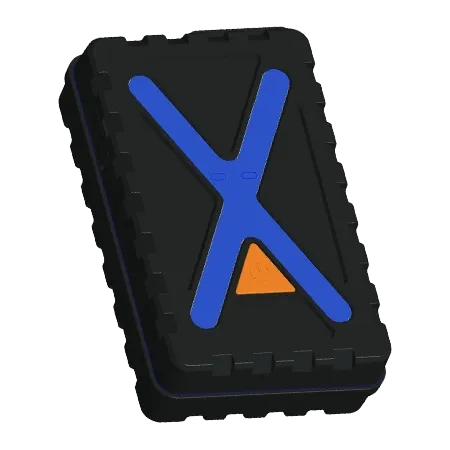

The GPT48-X tracker features rugged housing and a magnetic mounting base for easy installation on metal surfaces.
