Global logistics leaders want more than dots on a map—they need event-driven visibility that turns risk into response. This article explores how ultra-low-power asset tracking solutions built on Nordic nRF9160 and Real-Time Wake enable durable, data-driven logistics at scale.
Why Logistics Visibility Still Breaks in the Last Mile
Conventional trackers overload networks, drain batteries or fail certification when you need them most. At the edge, the real constraints are:
- Power budget: years of unattended operation on a compact Li‑SOCl₂ pack;
- Coverage variability: indoors, steel‑dense yards or cross‑border roaming where LTE‑M/NB‑IoT behaves differently;
- Event fidelity: temperature excursions, door open, shock/tilt/bright‑light events require fast wake and clean payloads; and
- Operational fit: devices must install fast (screws, adhesive, magnetic), survive abuse (IP‑rated) and pass global compliance.
Rather than chasing more network packets, next‑generation devices collect exactly what operations teams need and transmit with the lowest possible energy budget and highest reliability.
Hardware Building Blocks Optimized for Reality
Eelink’s portfolio covers high‑value assets across sea, road and warehouse—from pallets to containers and returnable packaging. Key devices include:
- GPT50 – Pallet/asset tracker with ultra‑long battery life for multi‑year deployments, LTE‑M/NB‑IoT global variants, IP‑rated enclosure and high‑gain GNSS for difficult yards.
- GPT48‑X – Magnetic LTE Cat‑M1 asset tracker designed for steel assets and quick field installation. Nordic nRF9160 inside + Real‑Time Wake (SMS/eDRX) enables low‑latency events with minimal energy.
- GPT29 – Compact form factor for lightweight assets and parcel applications where size matters.
- TPT02 – Temperature‑centric cold‑chain tracking with calibrated sensing for pharmaceuticals and food logistics.
- DB01 BLE Gateway – A battery‑efficient bridge for dense fleets of BLE sensors; aggregates beacons and publishes to the cloud via MQTT, reducing SIM and data costs.
Each device is engineered for long-life power systems, global radio compliance and field‑serviceability. We combine GNSS, cellular and environmental sensors (temperature, humidity, light, motion/vibration) with firmware safeguards: adaptive sampling, accelerometer-triggered wake and exception reporting to keep payloads small and useful.
Nordic nRF9160 + Real-Time Wake: Fast Signals, Tiny Energy
At the heart of these LTE‑M architectures, the Nordic nRF9160 SiP provides low current draw, assisted GNSS and robust PSM/eDRX modes. Eelink firmware extends that baseline with Real‑Time Wake via SMS/eDRX:
- Event-driven transmission: a light sensor spike (door open) or temperature breach wakes the module and publishes immediately.
- On‑demand control: a secure SMS can wake the module from deep sleep to push a configuration, request an on‑the‑spot GNSS fix or initiate a health check.
- Coverage resilience: eDRX parameters are tuned so devices “come up for air” predictably without burning the battery budget.
The result: latency in seconds when it matters, and years of life when nothing changes—exactly what last‑mile operations require.

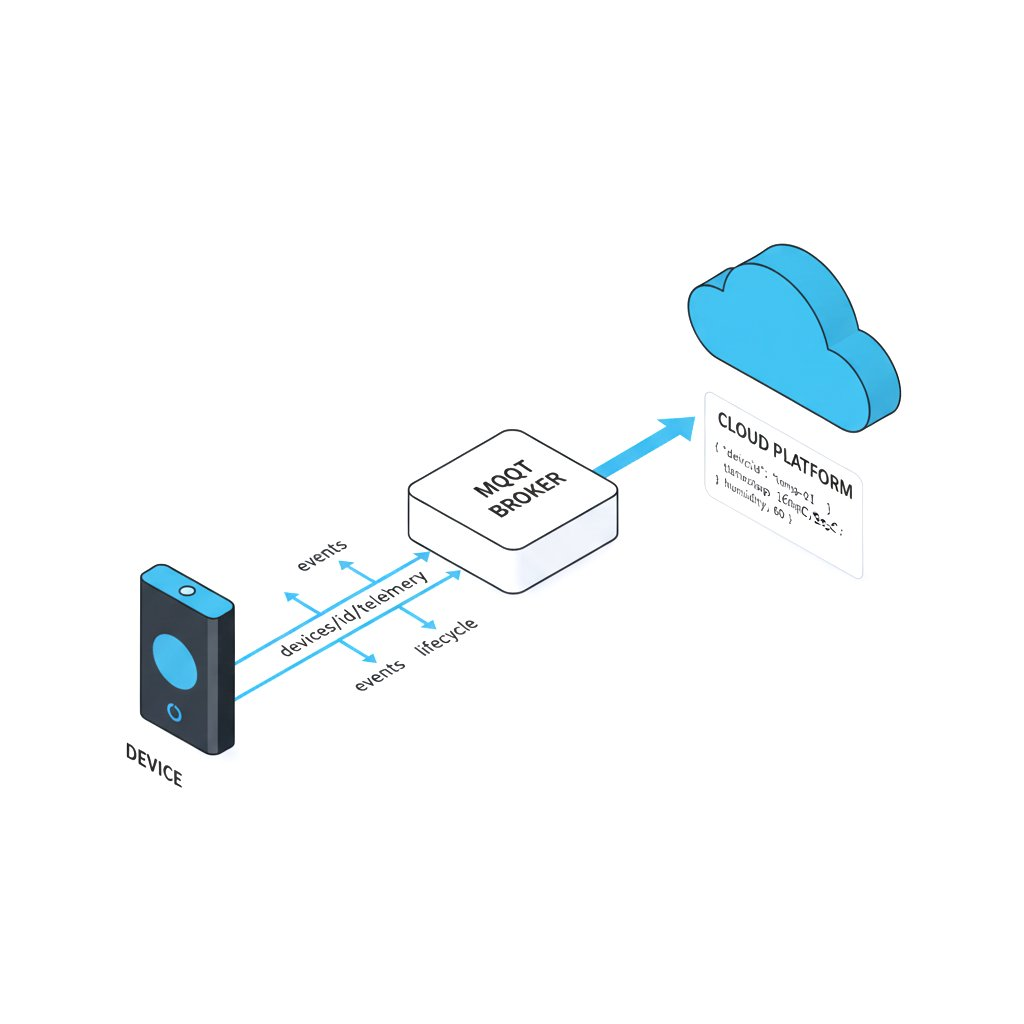

Open Interfaces: MQTT/REST That Teams Actually Use
Eelink provides developer‑friendly payloads and topics so platforms can ingest data quickly without brittle transforms. Example topics:
devices/<device_id>/telemetry
devices/<device_id>/events
devices/<device_id>/lifecycle
Payloads are delivered as lightweight JSON; for instance:
{
"device_id": "gpt48x-12A3F9",
"ts": "2025-03-15T08:42:11Z",
"loc": {"lat": 42.3646, "lon": -71.0052, "gnss_fix": true, "hdop": 0.9},
"cell": {"rsrp": -97, "band": 12},
"sensors": {"temp_c": 3.8, "hum": 58, "light_lux": 120, "shock_g": 0.4},
"battery_mv": 3540,
"fw": "2.4.1",
"mode": "eDRX"
}
With OTA controls, fleet managers can push version‑pinned firmware updates, stage rollouts and roll back automatically if any issue arises. Policy‑driven profiles (for example, a “cold‑chain night mode”) adjust sampling windows and thresholds at scale.
Installation & Durability: Built for Warehouses, Ports and Yard Ops
Rugged design matters as much as radio performance. These trackers mount via screws, high‑bond adhesives or magnetic faces; they achieve IP67+ ingress protection and resin‑potted electronics for vibration resistance. Tool‑free diagnostics via LED or NFC simplify field service, and optional QR codes help with inventory. Certification covers FCC/CE/RoHS/ISO9001 and carrier approvals, keeping NPIs on track.
Manufacturing That De‑Risks Your Roadmap
Dual manufacturing in China and Vietnam gives global customers options for tariff exposure, cross‑border lead times and continuity planning. With an ODM cycle that reaches EVT in ≤30 days, pilot programs launch on schedule and scale quickly. Design, assembly and testing occur under one roof, so issues surface early and get fixed fast.
Where These Devices Fit Best
Ultra‑low‑power trackers and gateways shine in specific contexts:
- Pallet pools & returnable transport items (RTIs): multi‑year trackers on high‑circulation assets; exception‑first data cuts retrieval time.
- Cold‑chain: TPT02 devices with calibrated temperature and light/open events for pharmaceuticals and fresh food.

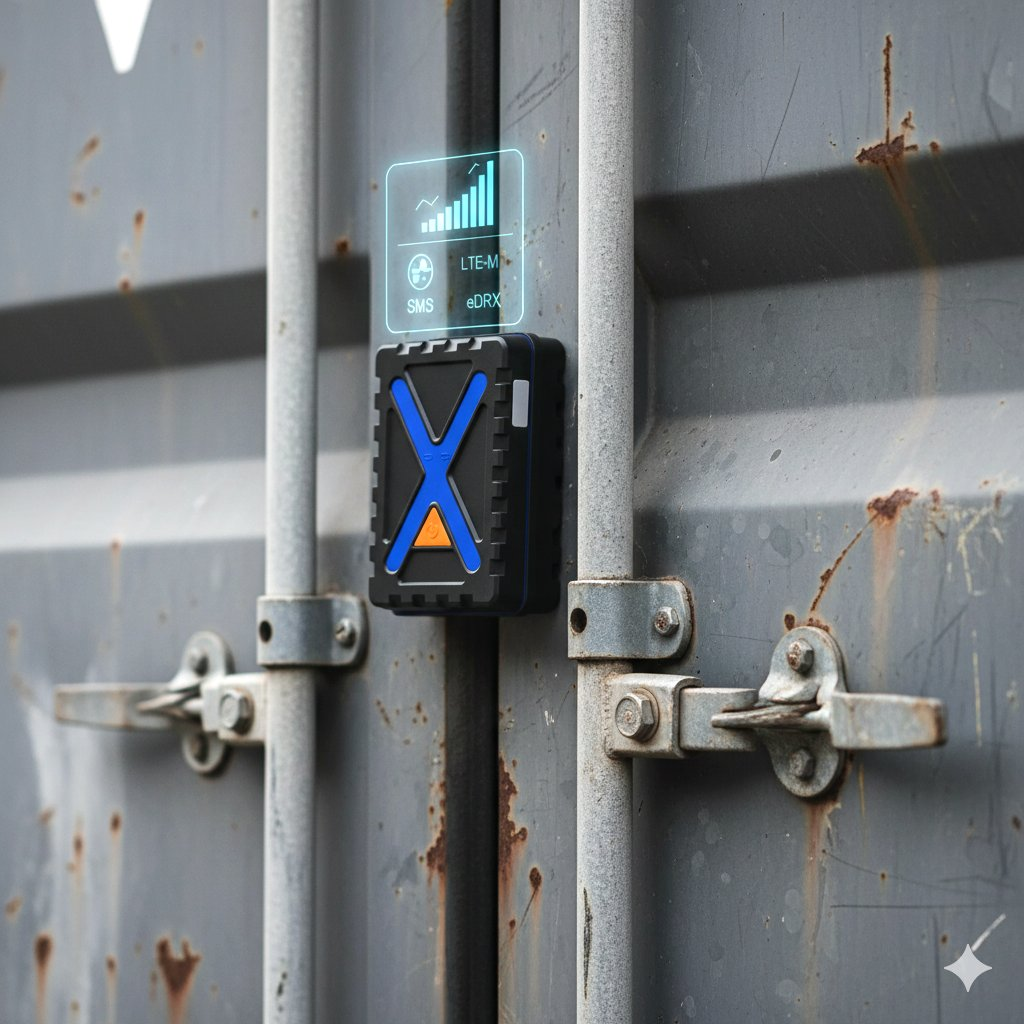

- Steel assets & yard operations: GPT48‑X units magnetically mounted; shock and light events help detect mishandling or unauthorized access.
- Parcel & lightweight assets: GPT29 where size and weight constraints dominate.

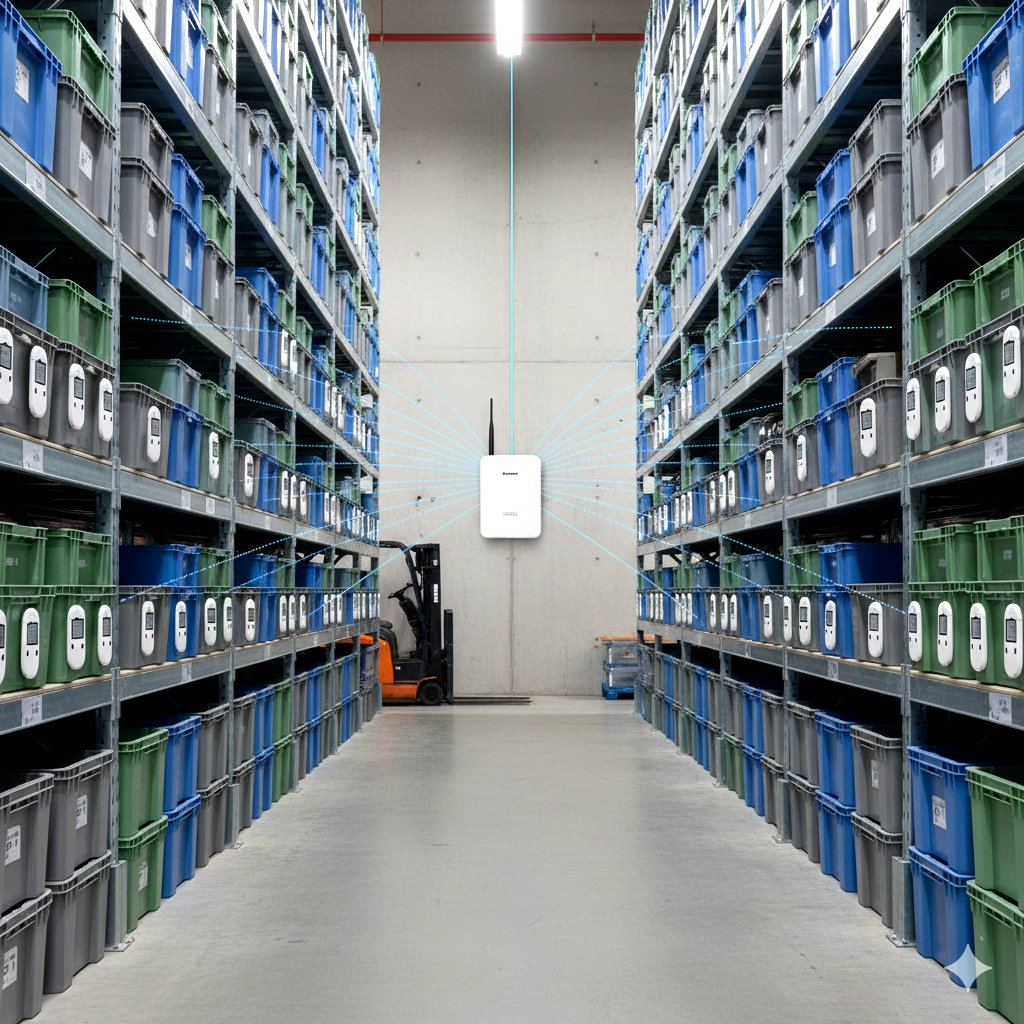

- Dense sensor fleets: DB01 gateway aggregates BLE beacons in cross‑dock or warehouse aisles, backhauling via MQTT.
Total Cost of Ownership: Why Battery Life Wins
Connectivity cost matters, but battery replacement costs dominate long‑horizon deployments. Eelink maximizes total cost of ownership by using aggressive sleep, rare but rich transmissions, adaptive sampling and payload compaction. BLE aggregation via the DB01 gateway reduces SIM count in dense sensor scenarios, further cutting recurring costs.
Getting Started: From Pilot to Scale
Deploying a fleet of ultra‑low‑power trackers involves a clear sequence:
- Scope – define assets, events and response playbooks (who gets alerted, via what channel).
- Device selection – match SKUs to mechanical mounting, environment and coverage.
- Integration – stand up MQTT topics or REST webhooks; map fields to your platform.
- Pilot – run 30‑90 days with EVT units; validate exception thresholds and battery curves.
- Scale – lock the bill of materials, confirm certifications and ramp through our dual‑factory plan.
For additional background on rugged asset tracking devices and evaluation guides, see our in‑depth overview on rugged asset tracking devices for logistics. If you want to learn more about the GPT48‑X itself, check out the full product profile for the GPT48‑X magnetic LTE‑M tracker.
Why Eelink
Engineering depth, manufacturing confidence, openness by design and global proof define Eelink. From hardware fit to fleet outcomes, we turn visibility into action and let you deliver on your customers’ promises.
Call to action: Ready to reduce loss, spoilage and search time across your network? Talk to our engineers about a 60‑day pilot and EVT allocation.
